Amphenol Pcd

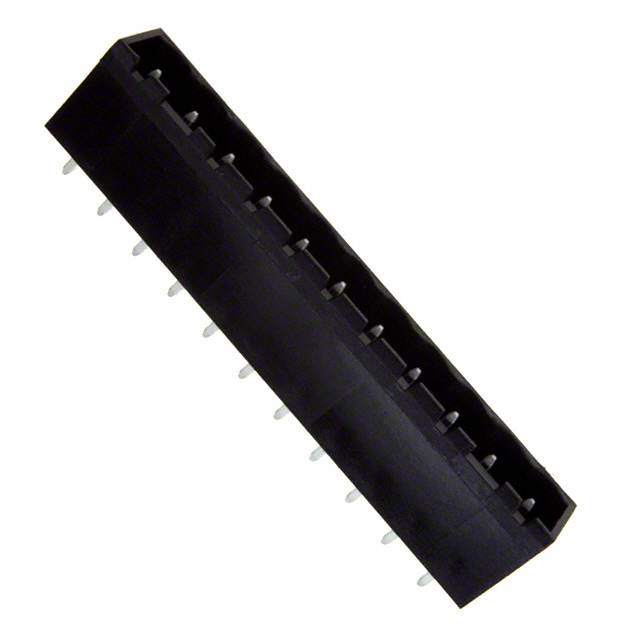

| Part Number | ELFH11250 | Manufacturer | Amphenol Pcd |
|---|---|---|---|
| Description | TERM BLOCK HDR 11POS VERT 5.08MM | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 48482 pcs | Data sheet | ELFH11250.pdf |
| Wire Strip Length | - | Wire Gauge or Range - mm² | - |
| Wire Gauge or Range - AWG | - | Voltage - UL | 300V |
| Type | Header, Male Pins, Shrouded (4 Side) | Torque - Screw | - |
| Termination Style | Solder | Series | ELFH |
| Screw Size | - | Positions Per Level | 11 |
| Plug Wire Entry | - | Pitch | 0.200" (5.08mm) |
| Packaging | Bulk | Other Names | APC1251 |
| Operating Temperature | -40°C ~ 105°C | Number of Positions | 11 |
| Number of Levels | 1 | Mounting Type | Through Hole |
| Material Flammability Rating | UL94 V-0 | Manufacturer Standard Lead Time | 8 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Height | 0.319" (8.10mm) |
| Ingress Protection | - | Housing Material | Polybutylene Terephthalate (PBT) |
| Header Orientation | Vertical | Features | - |
| Detailed Description | 11 Position Terminal Block Header, Male Pins, Shrouded (4 Side) 0.200" (5.08mm) Vertical Through Hole | Current - UL | 15A |
| Current - IEC | - | Contact Tail Length | - |
| Contact Mating Finish | Tin | Contact Material | Brass |
| Color | Black |
