SFW20R-2STE1LF

Amphenol FCI

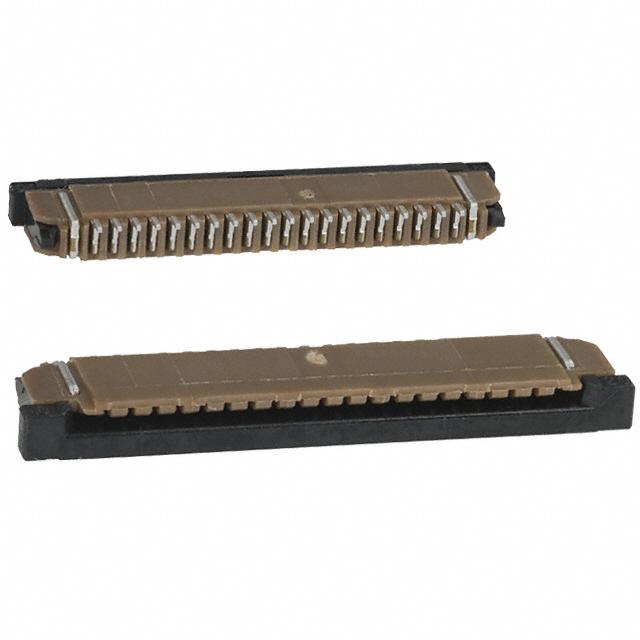

Image may be representation. See specifications for product details.

Product Overview

Part Number:	SFW20R-2STE1LF
Manufacturer/Brand:	Amphenol Commercial (Amphenol ICC)
Product description	CONN FFC FPC TOP 20POS 1MM R/A
Datasheets:	SFW20R-2STE1LF.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	129788 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 129788 pcs

Reference Price (In US Dollars)

2000 pcs: $0.169

4000 pcs: $0.163

6000 pcs: $0.158

10000 pcs: $0.15

14000 pcs: $0.147

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$0.169

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of SFW20R-2STE1LF

Part Number	SFW20R-2STE1LF	Manufacturer	Amphenol FCI
Description	CONN FFC FPC TOP 20POS 1MM R/A	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	129788 pcs	Data sheet	SFW20R-2STE1LF.pdf
Voltage Rating	100V	Termination	Solder
Series	SFW-R	Pitch	0.039" (1.00mm)
Packaging	Tape & Reel (TR)	Other Names	609-1914-2 SFW20R2STE1LF
Operating Temperature	-55°C ~ 105°C	Number of Positions	20
Mounting Type	Surface Mount, Right Angle	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Mating Cycles	20	Material Flammability Rating	UL94 V-0
Manufacturer Standard Lead Time	11 Weeks	Locking Feature	Slide Lock
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Housing Material	Polyphenylene Sulfide (PPS), Glass Filled
Housing Color	Brown	Height Above Board	0.106" (2.70mm)
Flat Flex Type	FFC, FPC	Features	Zero Insertion Force (ZIF)
FFC, FCB Thickness	0.30mm, 0.33mm	Detailed Description	20 Position FFC, FPC Connector Contacts, Top 0.039" (1.00mm) Surface Mount, Right Angle
Current Rating	1A	Contact Material	Phosphor Bronze
Contact Finish Thickness	-	Contact Finish	Tin
Connector/Contact Type	Contacts, Top	Cable End Type	Straight, Tapered
Actuator Material	Polyphenylene Sulfide (PPS), Glass Filled	Actuator Color	Black
