SFW14R-3STE1LF

Amphenol FCI

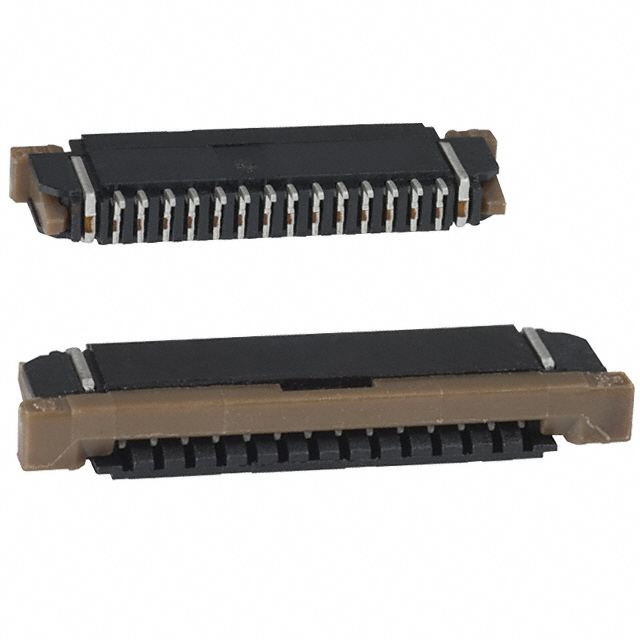

Image may be representation. See specifications for product details.

Product Overview

Part Number:	SFW14R-3STE1LF
Manufacturer/Brand:	Amphenol Commercial (Amphenol ICC)
Product description	CONN FFC BOTTOM 14POS 1.00MM R/A
Datasheets:	SFW14R-3STE1LF.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	290352 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 290352 pcs

Reference Price (In US Dollars)

1 pcs: $0.166

10 pcs: $0.155

25 pcs: $0.133

50 pcs: $0.113

100 pcs: $0.109

250 pcs: $0.098

500 pcs: $0.093

1000 pcs: $0.078

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$0.166

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of SFW14R-3STE1LF

Part Number	SFW14R-3STE1LF	Manufacturer	Amphenol FCI
Description	CONN FFC BOTTOM 14POS 1.00MM R/A	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	290352 pcs	Data sheet	SFW14R-3STE1LF.pdf
Voltage Rating	100V	Termination	Solder
Series	SFW-R	Pitch	0.039" (1.00mm)
Packaging	Cut Tape (CT)	Other Names	609-1904-1
Operating Temperature	-55°C ~ 105°C	Number of Positions	14
Mounting Type	Surface Mount, Right Angle	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Mating Cycles	20	Material Flammability Rating	UL94 V-0
Manufacturer Standard Lead Time	11 Weeks	Locking Feature	Slide Lock
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Housing Material	Polyphenylene Sulfide (PPS), Glass Filled
Housing Color	Black	Height Above Board	0.106" (2.70mm)
Flat Flex Type	FFC, FPC	Features	Zero Insertion Force (ZIF)
FFC, FCB Thickness	0.30mm, 0.33mm	Detailed Description	14 Position FFC, FPC Connector Contacts, Bottom 0.039" (1.00mm) Surface Mount, Right Angle
Current Rating	1A	Contact Material	Phosphor Bronze
Contact Finish Thickness	-	Contact Finish	Tin
Connector/Contact Type	Contacts, Bottom	Cable End Type	Notched
Actuator Material	Polyphenylene Sulfide (PPS), Glass Filled	Actuator Color	Brown
