Alpha and Omega Semiconductor, Inc.
| Part Number | AON7254 | Manufacturer | Alpha and Omega Semiconductor, Inc. |
|---|---|---|---|
| Description | MOSFET N-CH 150V 17A 8DFN | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 96552 pcs | Data sheet | AON7254.pdf |
| Vgs(th) (Max) @ Id | 2.7V @ 250µA | Vgs (Max) | ±20V |

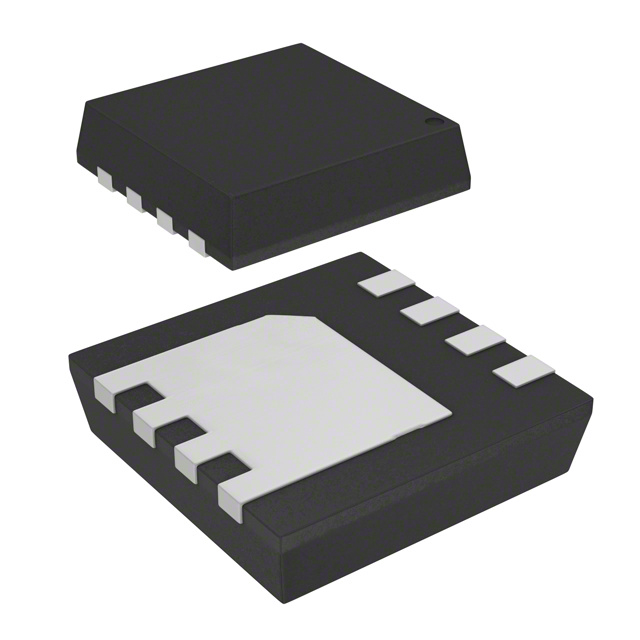

| Technology | MOSFET (Metal Oxide) | Supplier Device Package | 8-DFN-EP (3.3x3.3) |
| Series | AlphaMOS | Rds On (Max) @ Id, Vgs | 54 mOhm @ 5A, 10V |
| Power Dissipation (Max) | 4.1W (Ta), 39W (Tc) | Packaging | Tape & Reel (TR) |
| Package / Case | 8-PowerWDFN | Other Names | 785-1675-2 |
| Operating Temperature | -55°C ~ 150°C (TJ) | Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Manufacturer Standard Lead Time | 26 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Input Capacitance (Ciss) (Max) @ Vds | 675pF @ 75V |
| Gate Charge (Qg) (Max) @ Vgs | 20nC @ 10V | FET Type | N-Channel |
| FET Feature | - | Drive Voltage (Max Rds On, Min Rds On) | 4.5V, 10V |
| Drain to Source Voltage (Vdss) | 150V | Detailed Description | N-Channel 150V 5.5A (Ta), 17A (Tc) 4.1W (Ta), 39W (Tc) Surface Mount 8-DFN-EP (3.3x3.3) |
| Current - Continuous Drain (Id) @ 25°C | 5.5A (Ta), 17A (Tc) |
