AON6810

Alpha and Omega Semiconductor, Inc.

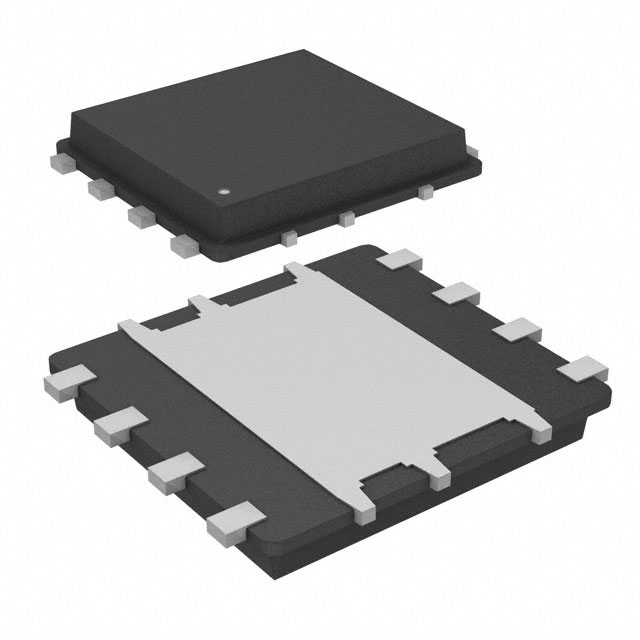

Image may be representation. See specifications for product details.

Product Overview

Part Number:	AON6810
Manufacturer/Brand:	Alpha and Omega Semiconductor, Inc.
Product description	MOSFET 2N-CH 30V 25A 8-DFN
Datasheets:	1.AON6810.pdf 2.AON6810.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	113219 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 113219 pcs

Reference Price (In US Dollars)

3000 pcs: $0.205

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$0.205

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of AON6810

Part Number	AON6810	Manufacturer	Alpha and Omega Semiconductor, Inc.
Description	MOSFET 2N-CH 30V 25A 8-DFN	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	113219 pcs	Data sheet	1.AON6810.pdf 2.AON6810.pdf
Vgs(th) (Max) @ Id	2.2V @ 250µA	Supplier Device Package	8-DFN-EP (5.2x5.55)
Series	-	Rds On (Max) @ Id, Vgs	4.4 mOhm @ 20A, 10V
Power - Max	4.1W	Packaging	Tape & Reel (TR)
Package / Case	8-SMD, Flat Lead Exposed Pad	Other Names	785-1629-2
Operating Temperature	-55°C ~ 150°C (TJ)	Mounting Type	Surface Mount
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Manufacturer Standard Lead Time	26 Weeks
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Input Capacitance (Ciss) (Max) @ Vds	1720pF @ 15V
Gate Charge (Qg) (Max) @ Vgs	34nC @ 10V	FET Type	2 N-Channel (Dual) Common Drain
FET Feature	Logic Level Gate	Drain to Source Voltage (Vdss)	30V
Detailed Description	Mosfet Array 2 N-Channel (Dual) Common Drain 30V 25A 4.1W Surface Mount 8-DFN-EP (5.2x5.55)	Current - Continuous Drain (Id) @ 25°C	25A
