AON5820_101

Alpha and Omega Semiconductor, Inc.

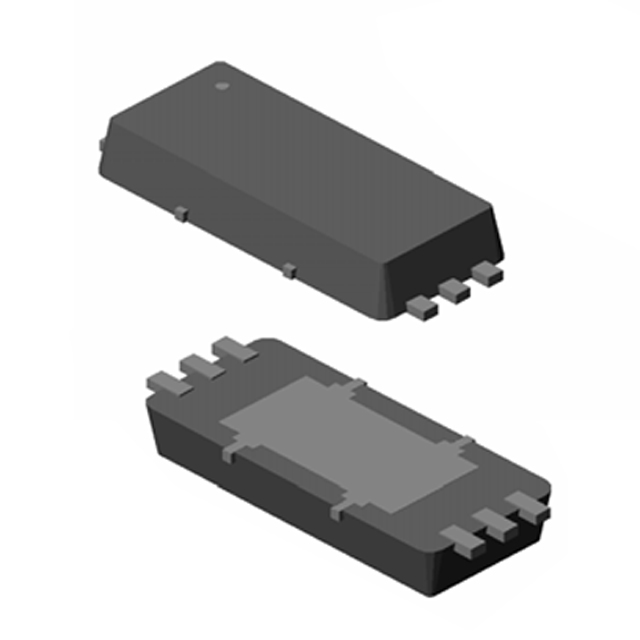

Image may be representation. See specifications for product details.

Product Overview

Part Number:	AON5820_101
Manufacturer/Brand:	Alpha and Omega Semiconductor, Inc.
Product description	MOSFET 2N-CH 20V 10A 6DFN
Datasheets:	AON5820_101.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	5395 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 5395 pcs

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of AON5820_101

Part Number	AON5820_101	Manufacturer	Alpha and Omega Semiconductor, Inc.
Description	MOSFET 2N-CH 20V 10A 6DFN	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	5395 pcs	Data sheet	AON5820_101.pdf
Vgs(th) (Max) @ Id	1V @ 250µA	Supplier Device Package	6-DFN-EP (2x5)
Series	-	Rds On (Max) @ Id, Vgs	9.5 mOhm @ 10A, 4.5V
Power - Max	1.7W	Packaging	Bulk
Package / Case	6-SMD, Flat Lead Exposed Pad	Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Input Capacitance (Ciss) (Max) @ Vds	1510pF @ 10V
Gate Charge (Qg) (Max) @ Vgs	15nC @ 4.5V	FET Type	2 N-Channel (Dual) Common Drain
FET Feature	Logic Level Gate	Drain to Source Voltage (Vdss)	20V
Detailed Description	Mosfet Array 2 N-Channel (Dual) Common Drain 20V 10A 1.7W Surface Mount 6-DFN-EP (2x5)	Current - Continuous Drain (Id) @ 25°C	10A
