AOB15B60D

Alpha and Omega Semiconductor, Inc.

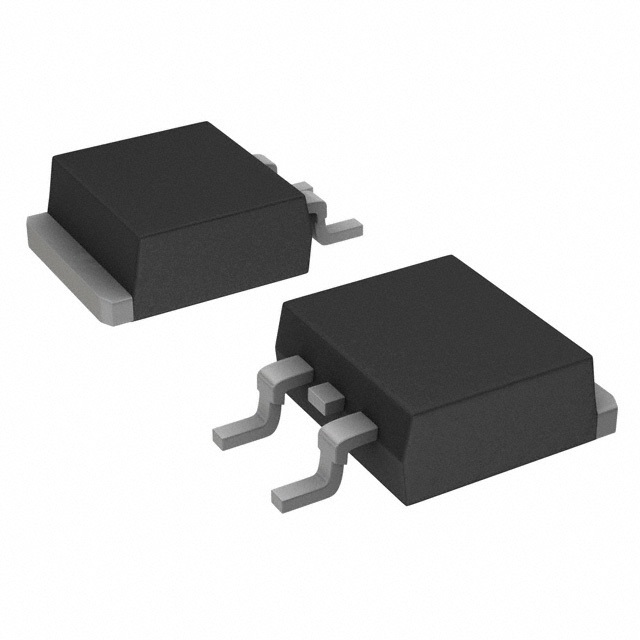

Image may be representation. See specifications for product details.

Product Overview

Part Number:	AOB15B60D
Manufacturer/Brand:	Alpha and Omega Semiconductor, Inc.
Product description	IGBT 600V 30A 167W TO263
Datasheets:	1.AOB15B60D.pdf 2.AOB15B60D.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	60218 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 60218 pcs

Reference Price (In US Dollars)

800 pcs: $0.497

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$0.497

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of AOB15B60D

Part Number	AOB15B60D	Manufacturer	Alpha and Omega Semiconductor, Inc.
Description	IGBT 600V 30A 167W TO263	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	60218 pcs	Data sheet	1.AOB15B60D.pdf 2.AOB15B60D.pdf
Voltage - Collector Emitter Breakdown (Max)	600V	Vce(on) (Max) @ Vge, Ic	1.8V @ 15V, 15A
Test Condition	400V, 15A, 20 Ohm, 15V	Td (on/off) @ 25°C	21ns/73ns
Switching Energy	420µJ (on), 110µJ (off)	Supplier Device Package	TO-263 (D2Pak)
Series	Alpha IGBT™	Reverse Recovery Time (trr)	196ns
Power - Max	167W	Packaging	Tape & Reel (TR)
Package / Case	TO-263-3, D²Pak (2 Leads + Tab), TO-263AB	Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Manufacturer Standard Lead Time	26 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Input Type	Standard	IGBT Type	-
Gate Charge	25.4nC	Detailed Description	IGBT 600V 30A 167W Surface Mount TO-263 (D2Pak)
Current - Collector Pulsed (Icm)	60A	Current - Collector (Ic) (Max)	30A
