ACS758LCB-100U-PFF-T

Allegro MicroSystems, LLC.

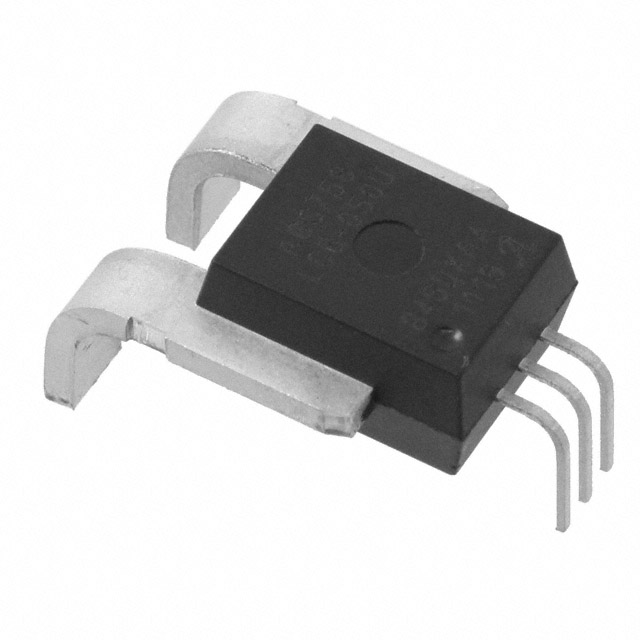

Image may be representation. See specifications for product details.

Product Overview

Part Number:	ACS758LCB-100U-PFF-T
Manufacturer/Brand:	Allegro MicroSystems, LLC.
Product description	SENSOR CURRENT HALL 100A DC
Datasheets:	ACS758LCB-100U-PFF-T.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	20253 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

Download Product Details PDF

In Stock 20253 pcs

Reference Price (In US Dollars)

1 pcs: $3.047

5 pcs: $2.673

10 pcs: $2.405

25 pcs: $2.138

50 pcs: $1.978

100 pcs: $1.71

500 pcs: $1.604

1000 pcs: $1.497

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$3.047

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of ACS758LCB-100U-PFF-T

Part Number	ACS758LCB-100U-PFF-T	Manufacturer	Allegro MicroSystems, LLC.
Description	SENSOR CURRENT HALL 100A DC	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	20253 pcs	Data sheet	ACS758LCB-100U-PFF-T.pdf
Voltage - Supply	3 V ~ 5.5 V	Series	Automotive, AEC-Q100
Sensor Type	Hall Effect, Open Loop	Sensitivity	40mV/A
Response Time	4µs	Polarization	Unidirectional
Packaging	Tube	Package / Case	5-CB Formed Leads, PFF
Output	Ratiometric, Voltage	Other Names	620-1354 ACS758LCB100UPFFT
Operating Temperature	-40°C ~ 150°C	Number of Channels	1
Mounting Type	Through Hole	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Linearity	±1.25%	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Frequency	DC ~ 120kHz	For Measuring	DC
Detailed Description	Current Sensor 100A 1 Channel Hall Effect, Open Loop Unidirectional 5-CB Formed Leads, PFF	Current - Supply (Max)	13.5mA
Current - Sensing	100A	Accuracy	±2.4%
