PT5L7LC4

Agastat Relays / TE Connectivity

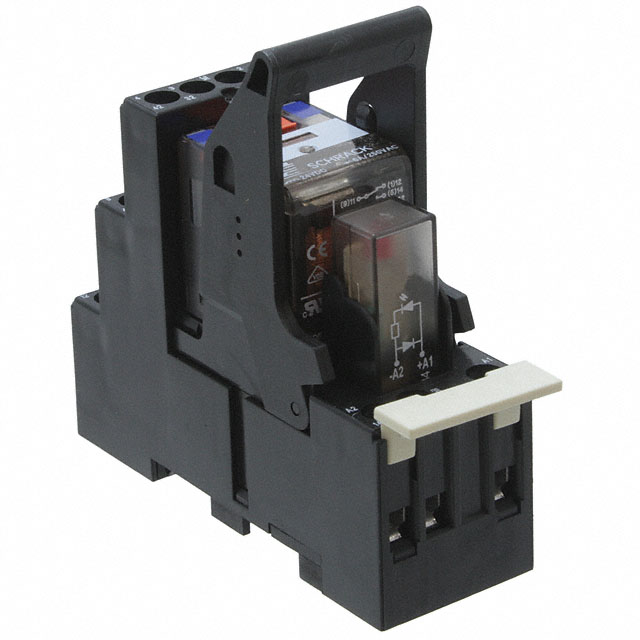

Image may be representation. See specifications for product details.

Product Overview

Part Number:	PT5L7LC4
Manufacturer/Brand:	Agastat Relays / TE Connectivity
Product description	RELAY GEN PURPOSE 4PDT 6A 24V
Datasheets:	PT5L7LC4.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	3694 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

Download Product Details PDF

In Stock 3694 pcs

Reference Price (In US Dollars)

1 pcs: $12.619

10 pcs: $11.988

25 pcs: $11.357

50 pcs: $10.726

100 pcs: $10.096

250 pcs: $9.465

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$12.619

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of PT5L7LC4

Part Number	PT5L7LC4	Manufacturer	Agastat Relays / TE Connectivity
Description	RELAY GEN PURPOSE 4PDT 6A 24V	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	3694 pcs	Data sheet	PT5L7LC4.pdf
Turn On Voltage (Max)	18 VDC	Turn Off Voltage (Min)	2.4 VDC
Termination Style	Screw Terminal	Switching Voltage	240VAC - Max
Series	PT, SCHRACK	Release Time	18ms
Relay Type	General Purpose with Socket	Packaging	Bulk
Other Names	1415535-9 1415535-9-ND 14155359 PB1527 PT5L7LC4-ND	Operating Temperature	-40°C ~ 70°C
Operate Time	15ms	Mounting Type	DIN Rail
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Manufacturer Standard Lead Time	17 Weeks
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Features	Diode, LED Indicator, Mechanical Indicator, Test Button
Detailed Description	General Purpose with Socket Relay 4PDT (4 Form C) 24VDC Coil DIN Rail	Contact Rating (Current)	6A
Contact Material	Silver Nickel (AgNi)	Contact Form	4PDT (4 Form C)
Coil Voltage	24VDC	Coil Type	Non Latching
Coil Resistance	777 Ohms	Coil Power	741 mW
Coil Current	30.8mA
