HDP24-18-20PN

Agastat Relays / TE Connectivity

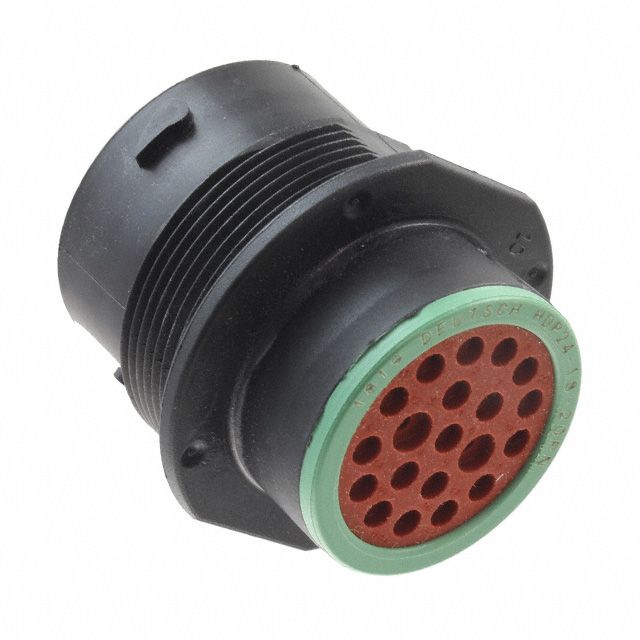

Image may be representation. See specifications for product details.

Product Overview

Part Number:	HDP24-18-20PN
Manufacturer/Brand:	Agastat Relays / TE Connectivity
Product description	CONN RCPT HSG MALE 20POS PNL MNT
Datasheets:	HDP24-18-20PN.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	14665 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 14665 pcs

Reference Price (In US Dollars)

1 pcs: $4.125

10 pcs: $3.947

25 pcs: $3.589

50 pcs: $3.409

100 pcs: $3.319

250 pcs: $2.961

500 pcs: $2.781

1000 pcs: $2.458

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$4.125

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of HDP24-18-20PN

Part Number	HDP24-18-20PN	Manufacturer	Agastat Relays / TE Connectivity
Description	CONN RCPT HSG MALE 20POS PNL MNT	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	14665 pcs	Data sheet	HDP24-18-20PN.pdf
Type	For Male Pins	Shielding	Unshielded
Shell Size, MIL	-	Shell Size - Insert	18-20
Shell Material	Thermoplastic	Shell Finish	-
Series	HDP20	Packaging	Bulk
Other Names	1734-1494 HDP24-18-20PN-ND	Orientation	Keyed
Operating Temperature	-55°C ~ 125°C	Number of Positions	20
Note	Contacts Not Included; Jam Nut Not Included	Mounting Type	Panel Mount
Mounting Feature	Bulkhead - Front Side Nut	Moisture Sensitivity Level (MSL)	Not Applicable
Material Flammability Rating	UL94 V-1	Manufacturer Standard Lead Time	10 Weeks
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Insert Material	-
Ingress Protection	IP67 - Dust Tight, Waterproof	Includes	-
Housing Color	Black	Features	-
Fastening Type	Bayonet Lock	Detailed Description	20 Position Circular Connector Receptacle Housing Panel Mount
Coupling Nut Material, Plating	-	Coupling Nut Diameter	-
Contact Type	Crimp	Contact Size	16 (2), 20 (18)
Contact Shape	Circular	Connector Type	Receptacle Housing
