Agastat Relays / TE Connectivity

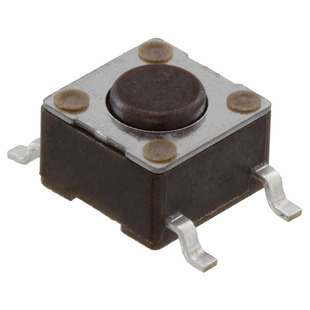

| Part Number | FSM2JSMLTR | Manufacturer | Agastat Relays / TE Connectivity |
|---|---|---|---|
| Description | SWITCH TACTILE SPST-NO 0.05A 24V | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 363188 pcs | Data sheet | 1.FSM2JSMLTR.pdf2.FSM2JSMLTR.pdf |
| Termination Style | Gull Wing | Switch Travel | 0.25mm |
| Switch Function | Off-Mom | Series | FSMJSML |
| Packaging | Tape & Reel (TR) | Outline | 6.00mm x 6.00mm |
| Other Names | 1571527-2 1571527-2-ND 450-2046-2 |
Operating Temperature | -35°C ~ 85°C |
| Operating Force | 100gf | Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Mechanical Life | 200,000 Cycles |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Ingress Protection | - |
| Illumination Voltage (Nominal) | - | Illumination Type, Color | - |
| Illumination | Non-Illuminated | Features | - |
| Detailed Description | Tactile Switch SPST-NO Top Actuated Surface Mount | Contact Rating @ Voltage | 0.05A @ 24VDC |
| Circuit | SPST-NO | Actuator Type | Standard |
| Actuator Orientation | Top Actuated | Actuator Material | Polyphenylene Sulfide (PPS) |
| Actuator Length, Right Angle | - | Actuator Height off PCB, Vertical | 4.30mm |
