Agastat Relays / TE Connectivity
| Part Number | 966926-5 | Manufacturer | Agastat Relays / TE Connectivity |
|---|---|---|---|

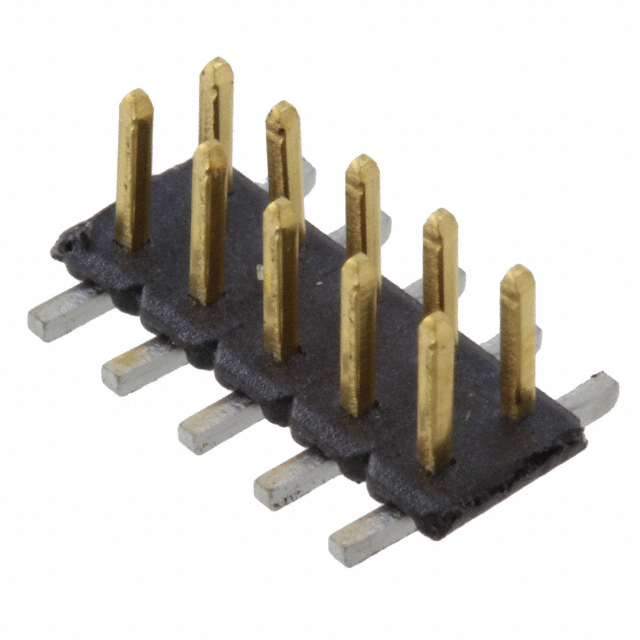

| Description | AMP MODU 2MM PIN HEADER 2X 5P SM | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 15000 pcs | Data sheet | 966926-5.pdf |
| Voltage Rating | 250VAC | Termination | Solder |
| Style | Board to Board or Cable | Shrouding | Unshrouded |
| Series | AMPMODU | Row Spacing - Mating | 0.079" (2.00mm) |
| Pitch - Mating | 0.079" (2.00mm) | Packaging | Cut Tape (CT) |
| Overall Contact Length | - | Other Names | A118024CT |
| Operating Temperature | -40°C ~ 105°C | Number of Rows | 2 |
| Number of Positions Loaded | All | Number of Positions | 10 |
| Mounting Type | Surface Mount | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material Flammability Rating | UL94 V-0 | Mated Stacking Heights | - |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | Liquid Crystal Polymer (LCP) |
| Insulation Height | 0.035" (0.90mm) | Insulation Color | Black |
| Ingress Protection | - | Features | Pick and Place |
| Fastening Type | Push-Pull | Detailed Description | Connector Header Surface Mount 10 position 0.079" (2.00mm) |
| Current Rating | 1A | Contact Type | Male Pin |
| Contact Shape | Square | Contact Material | Brass |
| Contact Length - Post | - | Contact Length - Mating | 0.136" (3.45mm) |
| Contact Finish Thickness - Post | 98.4µin (2.50µm) | Contact Finish Thickness - Mating | 30.0µin (0.76µm) |
| Contact Finish - Post | Tin | Contact Finish - Mating | Gold |
| Connector Type | Header, Breakaway | Applications | - |
