Agastat Relays / TE Connectivity
| Part Number | 86479-6 | Manufacturer | Agastat Relays / TE Connectivity |
|---|---|---|---|

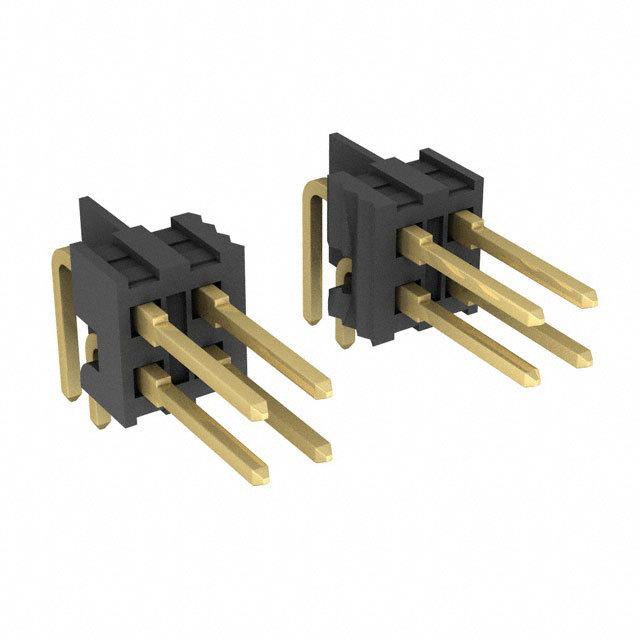

| Description | CONN HEADER 18POS DL R/A 30GOLD | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 4908 pcs | Data sheet | 86479-6.pdf |
| Voltage Rating | - | Termination | Solder |
| Style | Board to Board or Cable | Shrouding | Unshrouded |
| Series | AMPMODU Mod II | Row Spacing - Mating | 0.100" (2.54mm) |
| Pitch - Mating | 0.100" (2.54mm) | Packaging | Tray |
| Overall Contact Length | - | Operating Temperature | -65°C ~ 105°C |
| Number of Rows | 2 | Number of Positions Loaded | All |
| Number of Positions | 18 | Mounting Type | Through Hole, Right Angle |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | - | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insulation Material | Thermoplastic | Insulation Height | 0.238" (6.05mm) |
| Insulation Color | Black | Ingress Protection | - |
| Features | - | Fastening Type | Push-Pull |
| Detailed Description | Connector Header Through Hole, Right Angle 18 position 0.100" (2.54mm) | Current Rating | 3A |
| Contact Type | Male Pin | Contact Shape | Square |
| Contact Material | Phosphor Bronze | Contact Length - Post | 0.110" (2.79mm) |
| Contact Length - Mating | 0.318" (8.08mm) | Contact Finish Thickness - Post | Flash |
| Contact Finish Thickness - Mating | 30.0µin (0.76µm) | Contact Finish - Post | Gold |
| Contact Finish - Mating | Gold | Connector Type | Header |
| Applications | - |
