Agastat Relays / TE Connectivity

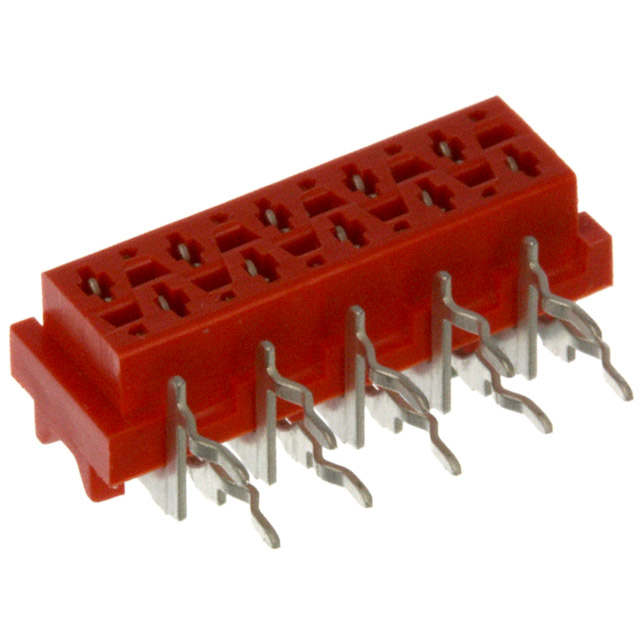

| Part Number | 8-215460-0 | Manufacturer | Agastat Relays / TE Connectivity |
|---|---|---|---|
| Description | CONN FMALE-ON-BRD 10POS R/A T/H | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 75938 pcs | Data sheet | 8-215460-0.pdf |
| Voltage Rating | 100VDC | Termination | Kinked Pin, Solder |
| Style | Board to Board or Cable | Series | Micro-MaTch |
| Row Spacing - Mating | 0.100" (2.54mm) | Pitch - Mating | 0.100" (2.54mm) |
| Packaging | Tape & Box (TB) | Other Names | 82154600 A99453TR |
| Operating Temperature | -40°C ~ 105°C | Number of Rows | 2 |
| Number of Positions Loaded | All | Number of Positions | 10 |
| Mounting Type | Through Hole, Right Angle | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material Flammability Rating | UL94 V-0 | Mated Stacking Heights | - |
| Manufacturer Standard Lead Time | 30 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insulation Material | Polybutylene Terephthalate (PBT), Polyester, Glass Filled | Insulation Height | 0.228" (5.80mm) |
| Insulation Color | Red | Ingress Protection | - |
| Features | - | Fastening Type | Push-Pull |
| Detailed Description | 10 Position Receptacle Connector 0.100" (2.54mm) Through Hole, Right Angle Tin | Current Rating | - |
| Contact Type | Forked | Contact Shape | - |
| Contact Material | Phosphor Bronze | Contact Length - Post | 0.122" (3.10mm) |
| Contact Finish Thickness - Post | - | Contact Finish Thickness - Mating | - |
| Contact Finish - Post | Tin | Contact Finish - Mating | Tin |
| Connector Type | Receptacle | Applications | Automotive, General Purpose |
