770190-2

Agastat Relays / TE Connectivity

Image may be representation. See specifications for product details.

Product Overview

Part Number:	770190-2
Manufacturer/Brand:	Agastat Relays / TE Connectivity
Product description	CONN HEADER 15POS VERT .163 AU
Datasheets:	770190-2.pdf
RoHs Status	Contains lead / RoHS non-compliant
Stock Condition	29275 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 29275 pcs

Reference Price (In US Dollars)

800 pcs: $1.043

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$1.043

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of 770190-2

Part Number	770190-2	Manufacturer	Agastat Relays / TE Connectivity
Description	CONN HEADER 15POS VERT .163 AU	Lead Free Status / RoHS Status	Contains lead / RoHS non-compliant
Quantity Available	29275 pcs	Data sheet	770190-2.pdf
Voltage Rating	600VAC	Termination	Solder
Style	Board to Cable/Wire	Shrouding	Shrouded - 4 Wall
Series	Mini-Universal MATE-N-LOK	Row Spacing - Mating	0.163" (4.14mm)
Pitch - Mating	0.163" (4.14mm)	Packaging	Bulk
Overall Contact Length	-	Other Names	770190-2-ND A25618
Operating Temperature	-20°C ~ 105°C	Number of Rows	3
Number of Positions Loaded	All	Number of Positions	15
Mounting Type	Through Hole	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Material Flammability Rating	UL94 V-0	Mated Stacking Heights	-
Manufacturer Standard Lead Time	13 Weeks	Lead Free Status / RoHS Status	Contains lead / RoHS non-compliant

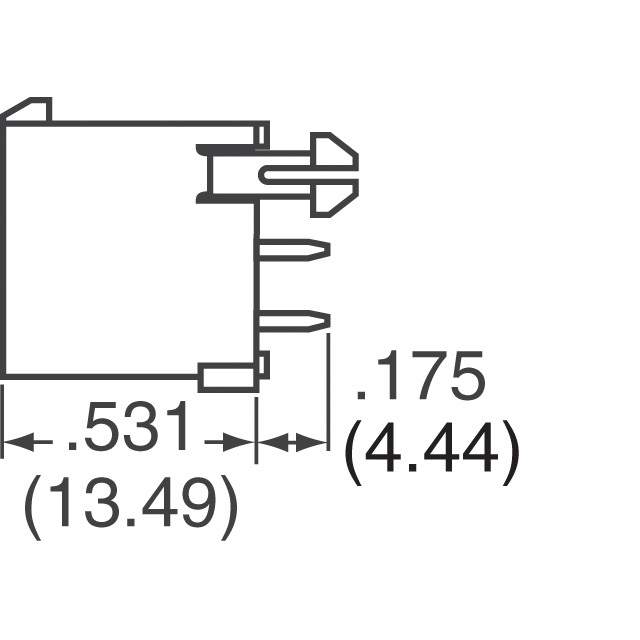

Insulation Material	Polyamide (PA), Nylon	Insulation Height	0.531" (13.50mm)
Insulation Color	White	Ingress Protection	-
Features	Board Lock	Fastening Type	Locking Ramp
Detailed Description	Connector Header Through Hole 15 position 0.163" (4.14mm)	Current Rating	Varies by Wire Gauge
Contact Type	Male Pin	Contact Shape	Circular
Contact Material	Brass	Contact Length - Post	0.175" (4.45mm)
Contact Length - Mating	-	Contact Finish Thickness - Post	150.0µin (3.81µm)
Contact Finish Thickness - Mating	30.0µin (0.76µm)	Contact Finish - Post	Tin-Lead
Contact Finish - Mating	Gold	Connector Type	Header
Applications	General Purpose
