647123-9

Agastat Relays / TE Connectivity

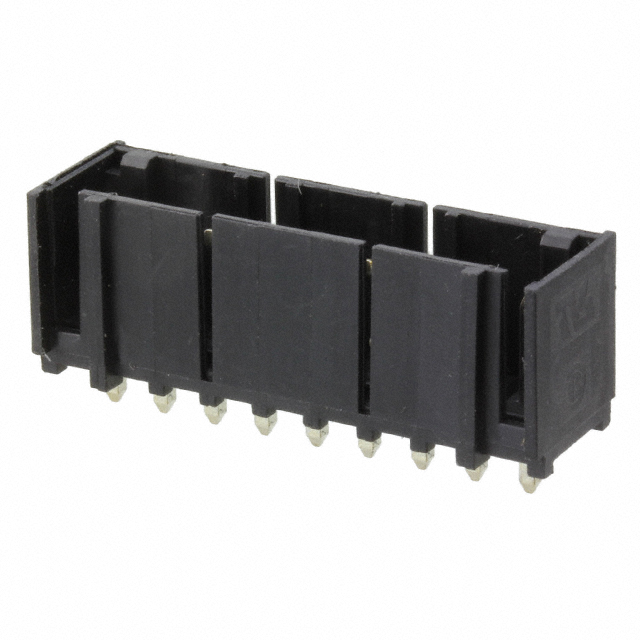

Image may be representation. See specifications for product details.

Product Overview

Part Number:	647123-9
Manufacturer/Brand:	Agastat Relays / TE Connectivity
Product description	CONN HEADER 9POS VERT .156 TIN
Datasheets:	647123-9.pdf
RoHs Status	Contains lead / RoHS non-compliant
Stock Condition	43678 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 43678 pcs

Reference Price (In US Dollars)

500 pcs: $0.873

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$0.873

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of 647123-9

Part Number	647123-9	Manufacturer	Agastat Relays / TE Connectivity
Description	CONN HEADER 9POS VERT .156 TIN	Lead Free Status / RoHS Status	Contains lead / RoHS non-compliant
Quantity Available	43678 pcs	Data sheet	647123-9.pdf
Voltage Rating	600VAC	Termination	Solder
Style	Board to Cable/Wire	Shrouding	Shrouded - 4 Wall
Series	MTA-156	Row Spacing - Mating	-
Pitch - Mating	0.156" (3.96mm)	Packaging	Bulk
Overall Contact Length	0.550" (13.97mm)	Other Names	647123-9-ND A114273
Operating Temperature	-55°C ~ 105°C	Number of Rows	1
Number of Positions Loaded	All	Number of Positions	9
Mounting Type	Through Hole	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Material Flammability Rating	UL94 V-0	Mated Stacking Heights	-
Manufacturer Standard Lead Time	22 Weeks	Lead Free Status / RoHS Status	Contains lead / RoHS non-compliant
Insulation Material	Thermoplastic, Glass Filled	Insulation Height	0.525" (13.34mm)
Insulation Color	Black	Ingress Protection	-
Features	-	Fastening Type	Friction Lock
Detailed Description	Connector Header Through Hole 9 position 0.156" (3.96mm)	Current Rating	Varies by Wire Gauge
Contact Type	Male Pin	Contact Shape	Square
Contact Material	Copper Alloy	Contact Length - Post	0.125" (3.18mm)
Contact Length - Mating	0.300" (7.62mm)	Contact Finish Thickness - Post	150.0µin (3.81µm)
Contact Finish Thickness - Mating	150.0µin (3.81µm)	Contact Finish - Post	Tin-Lead
Contact Finish - Mating	Tin-Lead	Connector Type	Header
Applications	General Purpose, Industrial
