5-1747147-3

Agastat Relays / TE Connectivity

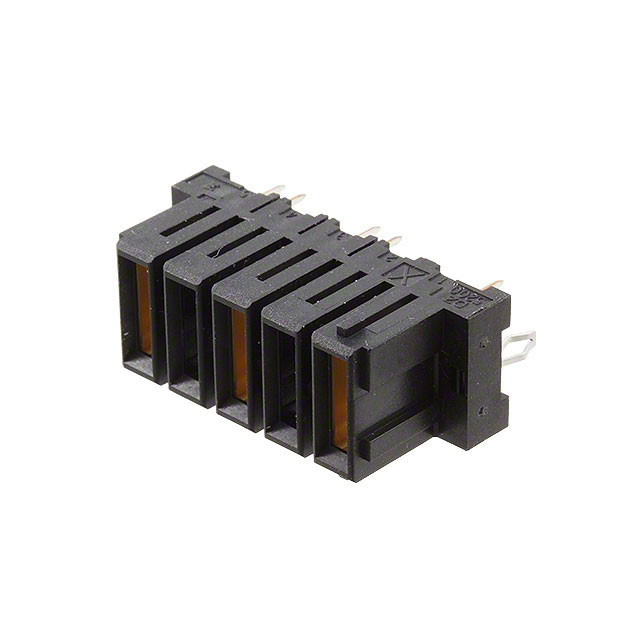

Image may be representation. See specifications for product details.

Product Overview

Part Number:	5-1747147-3
Manufacturer/Brand:	Agastat Relays / TE Connectivity
Product description	DZ5200 REC ASSY 3P 10.16MM PITCH
Datasheets:	5-1747147-3.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	14366 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 14366 pcs

Reference Price (In US Dollars)

1 pcs: $3.69

15 pcs: $3.528

30 pcs: $3.207

60 pcs: $3.046

105 pcs: $2.966

255 pcs: $2.646

510 pcs: $2.485

1005 pcs: $2.197

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$3.69

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of 5-1747147-3

Part Number	5-1747147-3	Manufacturer	Agastat Relays / TE Connectivity
Description	DZ5200 REC ASSY 3P 10.16MM PITCH	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	14366 pcs	Data sheet	5-1747147-3.pdf
Voltage Rating	600V	Termination	Solder
Style	Board to Board	Series	Dynamic DZ5200
Row Spacing - Mating	-	Pitch - Mating	0.400" (10.16mm)
Packaging	Tube	Other Names	A119667
Operating Temperature	-55°C ~ 105°C	Number of Rows	1
Number of Positions Loaded	All	Number of Positions	3
Mounting Type	Through Hole	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Material Flammability Rating	UL94 V-0	Mated Stacking Heights	-
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Insulation Material	Polyester, Glass Filled
Insulation Height	0.551" (14.00mm)	Insulation Color	Black
Ingress Protection	-	Features	Board Guide, Board Lock
Fastening Type	Push-Pull	Detailed Description	3 Position Receptacle Connector Through Hole Gold
Current Rating	30A	Contact Type	Female Blade Socket
Contact Shape	Rectangular	Contact Material	Phosphor Bronze
Contact Length - Post	0.150" (3.81mm)	Contact Finish Thickness - Post	78.7µin (2.00µm)
Contact Finish Thickness - Mating	8.00µin (0.203µm)	Contact Finish - Post	Tin
Contact Finish - Mating	Gold	Connector Type	Receptacle
Applications	-
