4-292229-0

Agastat Relays / TE Connectivity

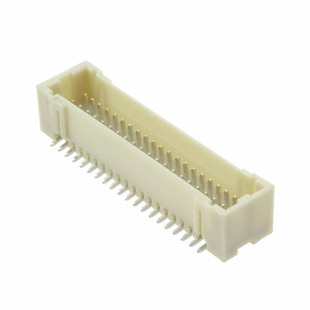

Image may be representation. See specifications for product details.

Product Overview

Part Number:	4-292229-0
Manufacturer/Brand:	Agastat Relays / TE Connectivity
Product description	MINI CT CONNECTORS
Datasheets:	4-292229-0.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	52233 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 52233 pcs

Reference Price (In US Dollars)

1 pcs: $0.812

10 pcs: $0.736

100 pcs: $0.631

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$0.812

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of 4-292229-0

Part Number	4-292229-0	Manufacturer	Agastat Relays / TE Connectivity
Description	MINI CT CONNECTORS	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	52233 pcs	Data sheet	4-292229-0.pdf
Voltage Rating	50VAC	Termination	Solder
Style	Board to Cable/Wire	Shrouding	Shrouded - 4 Wall
Series	Mini CT	Row Spacing - Mating	0.079" (2.00mm)
Pitch - Mating	0.059" (1.50mm)	Packaging	Cut Tape (CT)
Overall Contact Length	-	Other Names	42922290 A108296CT
Operating Temperature	-30°C ~ 105°C	Number of Rows	2
Number of Positions Loaded	All	Number of Positions	40
Mounting Type	Surface Mount	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Material Flammability Rating	UL94 V-0	Mated Stacking Heights	-
Manufacturer Standard Lead Time	15 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Insulation Material	Polyamide (PA), Nylon, Glass Filled	Insulation Height	0.291" (7.40mm)
Insulation Color	Beige	Ingress Protection	-
Features	Board Guide	Fastening Type	Detent Lock
Detailed Description	Connector Header Surface Mount 40 position 0.059" (1.50mm)	Current Rating	Varies by Wire Gauge
Contact Type	Male Pin	Contact Shape	Square
Contact Material	Brass	Contact Length - Post	-
Contact Length - Mating	0.114" (2.90mm)	Contact Finish Thickness - Post	-
Contact Finish Thickness - Mating	-	Contact Finish - Post	Tin
Contact Finish - Mating	Tin	Connector Type	Header
Applications	General Purpose
