3-1470209-3

Agastat Relays / TE Connectivity

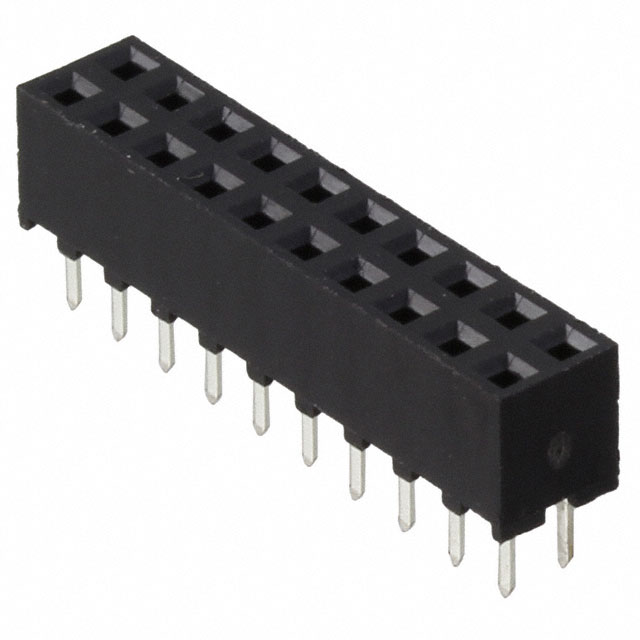

Image may be representation. See specifications for product details.

Product Overview

Part Number:	3-1470209-3
Manufacturer/Brand:	Agastat Relays / TE Connectivity
Product description	CONN RCPT 20POS DL 2MM 8GOLD T/H
Datasheets:	3-1470209-3.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	128853 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 128853 pcs

Reference Price (In US Dollars)

1 pcs: $0.359

10 pcs: $0.317

100 pcs: $0.274

500 pcs: $0.224

1000 pcs: $0.199

5000 pcs: $0.174

10000 pcs: $0.165

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$0.359

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of 3-1470209-3

Part Number	3-1470209-3	Manufacturer	Agastat Relays / TE Connectivity
Description	CONN RCPT 20POS DL 2MM 8GOLD T/H	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	128853 pcs	Data sheet	3-1470209-3.pdf
Voltage Rating	250VAC	Termination	Solder
Style	Board to Board	Series	AMPMODU
Row Spacing - Mating	0.079" (2.00mm)	Pitch - Mating	0.079" (2.00mm)
Packaging	Tray	Operating Temperature	-40°C ~ 105°C
Number of Rows	2	Number of Positions Loaded	All
Number of Positions	20	Mounting Type	Through Hole
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Material Flammability Rating	UL94 V-0
Mated Stacking Heights	-	Manufacturer Standard Lead Time	18 Weeks
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Insulation Material	Polyamide (PA66), Nylon 6/6
Insulation Height	0.177" (4.50mm)	Insulation Color	Black
Ingress Protection	-	Features	-
Fastening Type	Push-Pull	Detailed Description	20 Position Receptacle Connector 0.079" (2.00mm) Through Hole Gold
Current Rating	-	Contact Type	Female Socket
Contact Shape	Square	Contact Material	Copper Alloy
Contact Length - Post	0.102" (2.60mm)	Contact Finish Thickness - Post	80.0µin (2.03µm)
Contact Finish Thickness - Mating	8.00µin (0.203µm)	Contact Finish - Post	Tin
Contact Finish - Mating	Gold	Connector Type	Receptacle
Applications	-
