292161-9

Agastat Relays / TE Connectivity

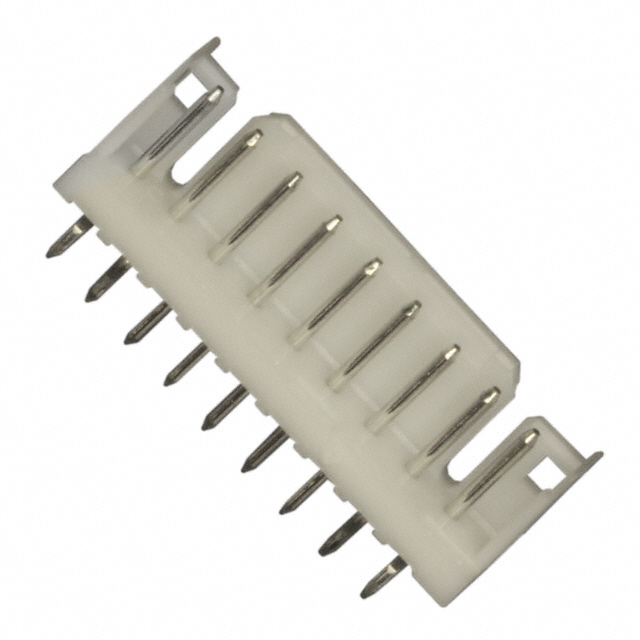

Image may be representation. See specifications for product details.

Product Overview

Part Number:	292161-9
Manufacturer/Brand:	Agastat Relays / TE Connectivity
Product description	CONN HEADER 9POS VERT 2MM T/H
Datasheets:	292161-9.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	203148 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 203148 pcs

Reference Price (In US Dollars)

1 pcs: $0.245

10 pcs: $0.231

100 pcs: $0.177

500 pcs: $0.154

1000 pcs: $0.127

5000 pcs: $0.111

10000 pcs: $0.104

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$0.245

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of 292161-9

Part Number	292161-9	Manufacturer	Agastat Relays / TE Connectivity
Description	CONN HEADER 9POS VERT 2MM T/H	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	203148 pcs	Data sheet	292161-9.pdf
Voltage Rating	125VAC	Termination	Kinked Pin, Solder
Style	Board to Cable/Wire	Shrouding	Shrouded - 3 Wall
Series	CT	Row Spacing - Mating	-
Pitch - Mating	0.079" (2.00mm)	Packaging	Bulk
Overall Contact Length	0.370" (9.40mm)	Other Names	2921619 A98595
Operating Temperature	-	Number of Rows	1
Number of Positions Loaded	All	Number of Positions	9
Mounting Type	Through Hole	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Material Flammability Rating	UL94 V-0	Mated Stacking Heights	-
Manufacturer Standard Lead Time	12 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Insulation Material	Polyamide (PA66), Nylon 6/6	Insulation Height	0.268" (6.80mm)
Insulation Color	Natural	Ingress Protection	-
Features	-	Fastening Type	Detent Lock
Detailed Description	Connector Header Through Hole 9 position 0.079" (2.00mm)	Current Rating	Varies by Wire Gauge
Contact Type	Male Pin	Contact Shape	Square
Contact Material	Brass	Contact Length - Post	0.126" (3.20mm)
Contact Length - Mating	0.177" (4.50mm)	Contact Finish Thickness - Post	-
Contact Finish Thickness - Mating	-	Contact Finish - Post	Tin
Contact Finish - Mating	Tin	Connector Type	Header
Applications	General Purpose
