Agastat Relays / TE Connectivity

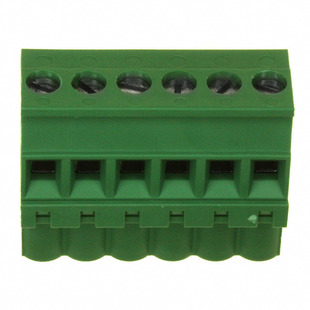

| Part Number | 284040-6 | Manufacturer | Agastat Relays / TE Connectivity |
|---|---|---|---|
| Description | TERM BLOCK PLUG 6POS 270DEG 5MM | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 26625 pcs | Data sheet | 1.284040-6.pdf2.284040-6.pdf |
| Wire Strip Length | 6-7.5mm | Wire Gauge or Range - mm² | 0.05-3mm² |
| Wire Gauge or Range - AWG | 12-30 AWG | Voltage - UL | 300V |
| Type | Plug, Female Sockets | Torque - Screw | 0.79 Nm (7.0 Lb-In) |
| Termination Style | Screw - Rising Cage Clamp | Series | Buchanan |
| Screw Size | M3 | Positions Per Level | 6 |
| Plug Wire Entry | 270° | Pitch | 0.197" (5.00mm) |
| Packaging | Bulk | Other Names | 284040-6-ND 2840406 A98365 |
| Operating Temperature | -40°C ~ 110°C | Number of Positions | 6 |
| Number of Levels | 1 | Mounting Type | Free Hanging (In-Line) |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Manufacturer Standard Lead Time | 21 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insulation Height | 0.984" (25.00mm) | Ingress Protection | - |
| Housing Material | Polyamide (PA66), Nylon 6/6 | Header Orientation | - |
| Features | Retention Latches (Non-Wire Side) | Detailed Description | 6 Position Terminal Block Plug, Female Sockets 0.197" (5.00mm) 270° Free Hanging (In-Line) |
| Current - UL | 15A | Current - IEC | - |
| Contact Tail Length | - | Contact Mating Finish | Tin |
| Contact Material | Phosphor Bronze | Color | Green |
