280521-1

Agastat Relays / TE Connectivity

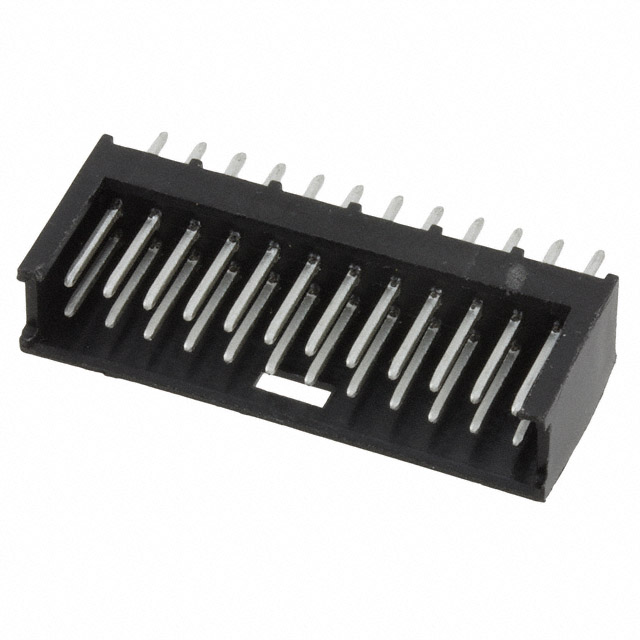

Image may be representation. See specifications for product details.

Product Overview

Part Number:	280521-1
Manufacturer/Brand:	Agastat Relays / TE Connectivity
Product description	CONN HEADER 24POS DUAL VERT TIN
Datasheets:	280521-1.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	93516 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 93516 pcs

Reference Price (In US Dollars)

1 pcs: $0.839

10 pcs: $0.763

100 pcs: $0.654

500 pcs: $0.545

1000 pcs: $0.467

5000 pcs: $0.414

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$0.839

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of 280521-1

Part Number	280521-1	Manufacturer	Agastat Relays / TE Connectivity
Description	CONN HEADER 24POS DUAL VERT TIN	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	93516 pcs	Data sheet	280521-1.pdf
Voltage Rating	40V	Termination	Solder
Style	Board to Board or Cable	Shrouding	Shrouded - 3 Wall
Series	AMPMODU Mod II	Row Spacing - Mating	0.100" (2.54mm)
Pitch - Mating	0.100" (2.54mm)	Packaging	Bulk
Overall Contact Length	0.563" (14.30mm)	Other Names	280521-1-ND 2805211 A106416
Operating Temperature	-40°C ~ 80°C	Number of Rows	2
Number of Positions Loaded	All	Number of Positions	24
Mounting Type	Through Hole	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Material Flammability Rating	UL94 V-0	Mated Stacking Heights	-
Manufacturer Standard Lead Time	30 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Insulation Material	Thermoplastic	Insulation Height	0.496" (12.60mm)
Insulation Color	Black	Ingress Protection	-
Features	-	Fastening Type	Detent Lock
Detailed Description	Connector Header Through Hole 24 position 0.100" (2.54mm)	Current Rating	3A
Contact Type	Male Pin	Contact Shape	Square
Contact Material	Brass	Contact Length - Post	0.138" (3.50mm)
Contact Length - Mating	0.260" (6.60mm)	Contact Finish Thickness - Post	118.1µin (3.00µm)
Contact Finish Thickness - Mating	118.1µin (3.00µm)	Contact Finish - Post	Tin
Contact Finish - Mating	Tin	Connector Type	Header
Applications	-
