Agastat Relays / TE Connectivity

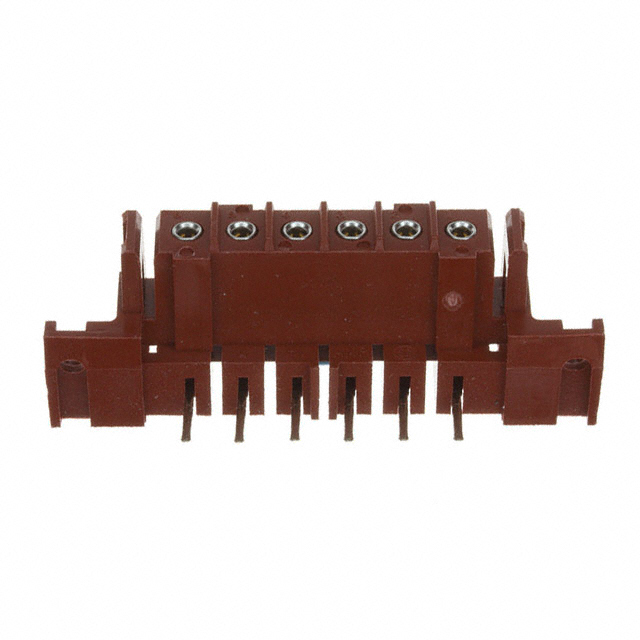

| Part Number | 207610-3 | Manufacturer | Agastat Relays / TE Connectivity |
|---|---|---|---|
| Description | CONN HDR SOCKET RTANG 6 POS GOLD | Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Quantity Available | 5896 pcs | Data sheet | 207610-3.pdf |
| Voltage Rating | 600V | Termination | Solder |
| Style | Board to Cable/Wire | Series | Metrimate |
| Row Spacing - Mating | - | Pitch - Mating | 0.197" (5.00mm) |
| Packaging | Tray | Other Names | 207610-3-ND A115045 |
| Operating Temperature | -55°C ~ 130°C | Number of Rows | 1 |
| Number of Positions Loaded | All | Number of Positions | 6 |
| Mounting Type | Through Hole, Right Angle | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material Flammability Rating | UL94 V-0 | Mated Stacking Heights | - |
| Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant | Insulation Material | Thermoplastic |
| Insulation Height | 0.433" (11.00mm) | Insulation Color | Red |
| Ingress Protection | - | Features | Mounting Flange |
| Fastening Type | Latch Holder | Detailed Description | 6 Position Header Connector 0.197" (5.00mm) Through Hole, Right Angle Gold |
| Current Rating | 7.5A | Contact Type | Female Socket |
| Contact Shape | Circular | Contact Material | Phosphor Bronze |
| Contact Length - Post | 0.186" (4.72mm) | Contact Finish Thickness - Post | 150.0µin (3.81µm) |
| Contact Finish Thickness - Mating | 30.0µin (0.76µm) | Contact Finish - Post | Tin-Lead |
| Contact Finish - Mating | Gold | Connector Type | Header |
| Applications | - |
