2-320564-3

Agastat Relays / TE Connectivity

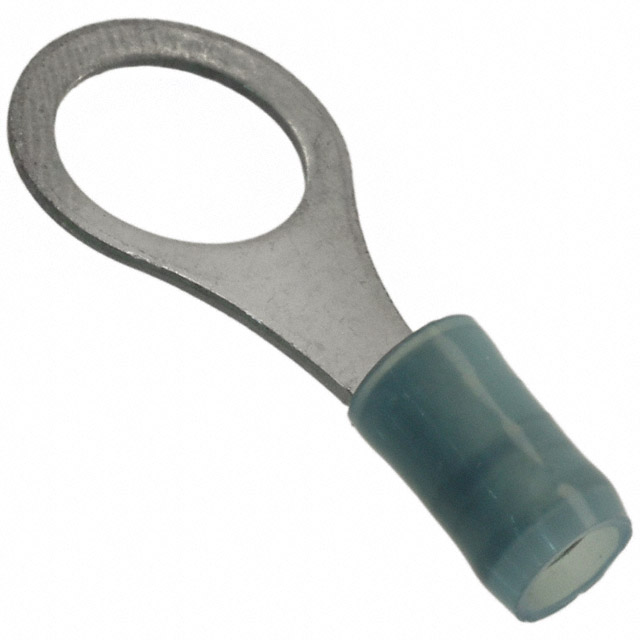

Image may be representation. See specifications for product details.

Product Overview

Part Number:	2-320564-3
Manufacturer/Brand:	Agastat Relays / TE Connectivity
Product description	CONN RING CIRC 14-16AWG #3/8
Datasheets:	2-320564-3.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	269028 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 269028 pcs

Reference Price (In US Dollars)

1 pcs: $0.167

10 pcs: $0.158

25 pcs: $0.135

50 pcs: $0.115

100 pcs: $0.11

250 pcs: $0.099

500 pcs: $0.095

1000 pcs: $0.079

2500 pcs: $0.072

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$0.167

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of 2-320564-3

Part Number	2-320564-3	Manufacturer	Agastat Relays / TE Connectivity
Description	CONN RING CIRC 14-16AWG #3/8	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	269028 pcs	Data sheet	2-320564-3.pdf
Wire Gauge	14-16 AWG	Width - Outer Edges	0.531" (13.49mm)
Thickness	0.031" (0.79mm)	Termination	Crimp
Terminal Type	Circular	Stud/Tab Size	3/8 Stud
Series	PIDG	Packaging	Tape & Reel (TR)
Other Names	2-320564-3-ND 23205643 A135497	Mounting Type	Free Hanging (In-Line)
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Material - Insulation	Polyamide (PA), Nylon
Manufacturer Standard Lead Time	14 Weeks	Length - Overall	1.218" (30.94mm)
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Insulation Diameter	0.105" ~ 0.150" (2.67mm ~ 3.81mm)
Insulation	Insulated	Features	Serrated Termination
Detailed Description	Ring Terminal Connector 3/8 Stud Circular 14-16 AWG Crimp	Contact Material	Copper
Contact Finish	Tin	Color	Blue
