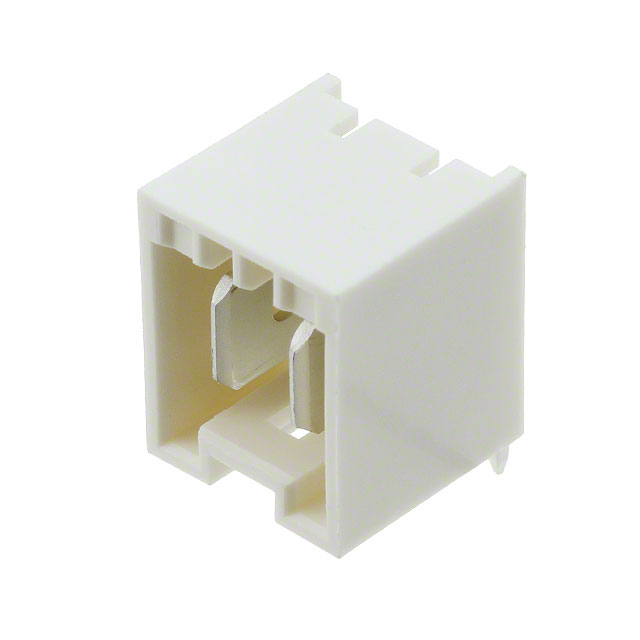

Agastat Relays / TE Connectivity
| Part Number | 1969352-2 | Manufacturer | Agastat Relays / TE Connectivity |
|---|---|---|---|
| Description | ASSY DIN R/A RAST5 HDR 02-A G | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 129855 pcs | Data sheet | 1969352-2.pdf |
| Voltage Rating | 250VAC | Termination | Solder |
| Style | Board to Cable/Wire | Shrouding | Shrouded - 4 Wall |
| Series | - | Row Spacing - Mating | - |
| Pitch - Mating | 0.197" (5.00mm) | Packaging | Tray |
| Overall Contact Length | - | Other Names | A119297 |
| Operating Temperature | -40°C ~ 120°C | Number of Rows | 1 |
| Number of Positions Loaded | All | Number of Positions | 2 |
| Mounting Type | Through Hole, Right Angle | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material Flammability Rating | UL94 V-2 | Mated Stacking Heights | - |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | Polyamide (PA66), Nylon 6/6 |
| Insulation Height | 0.656" (16.65mm) | Insulation Color | - |
| Ingress Protection | - | Features | Glow Wire Compliant |
| Fastening Type | Latch Holder | Detailed Description | Connector Header Through Hole, Right Angle 2 position 0.197" (5.00mm) |
| Current Rating | - | Contact Type | Tab |
| Contact Shape | Rectangular | Contact Material | Brass |
| Contact Length - Post | - | Contact Length - Mating | - |
| Contact Finish Thickness - Post | 150.0µin (3.81µm) | Contact Finish Thickness - Mating | 150.0µin (3.81µm) |
| Contact Finish - Post | Tin | Contact Finish - Mating | Tin |
| Connector Type | Header | Applications | General Purpose |
