18782B200

Agastat Relays / TE Connectivity

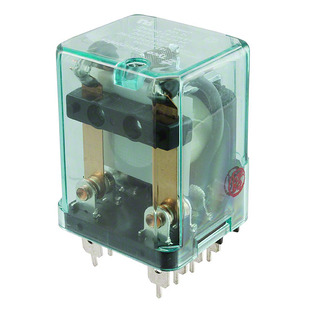

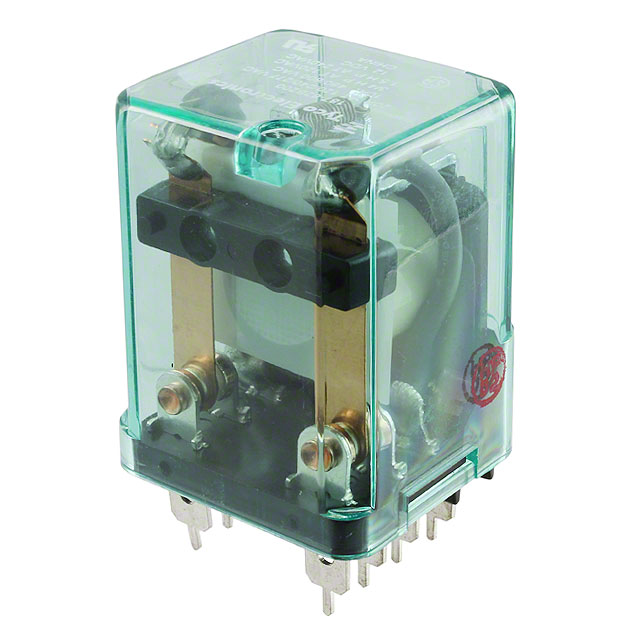

Image may be representation. See specifications for product details.

Product Overview

Part Number:	18782B200
Manufacturer/Brand:	Agastat Relays / TE Connectivity
Product description	RELAY GEN PURPOSE DPDT 20A 12V
Datasheets:	18782B200.pdf
RoHs Status	Contains lead / RoHS Compliant
Stock Condition	7362 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

Download Product Details PDF

In Stock 7362 pcs

Reference Price (In US Dollars)

1 pcs: $7.95

10 pcs: $7.066

25 pcs: $6.713

50 pcs: $6.36

100 pcs: $6.006

250 pcs: $5.477

500 pcs: $5.123

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$7.95

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of 18782B200

Part Number	18782B200	Manufacturer	Agastat Relays / TE Connectivity
Description	RELAY GEN PURPOSE DPDT 20A 12V	Lead Free Status / RoHS Status	Contains lead / RoHS Compliant
Quantity Available	7362 pcs	Data sheet	18782B200.pdf
Turn On Voltage (Max)	9 VDC	Turn Off Voltage (Min)	-
Termination Style	PC Pin	Switching Voltage	240VAC, 28VDC - Max
Series	187	Release Time	10ms
Relay Type	General Purpose	Packaging	Tray
Other Names	3-1608066-7 3-1608066-7-ND 316080667 PB1807	Operating Temperature	-45°C ~ 70°C
Operate Time	20ms	Mounting Type	Through Hole
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Manufacturer Standard Lead Time	13 Weeks
Lead Free Status / RoHS Status	Contains lead / RoHS Compliant	Features	Insulation - Class B
Detailed Description	General Purpose Relay DPDT (2 Form C) 12VDC Coil Through Hole	Contact Rating (Current)	20A
Contact Material	Silver Cadmium Oxide (AgCdO)	Contact Form	DPDT (2 Form C)
Coil Voltage	12VDC	Coil Type	Non Latching
Coil Resistance	120 Ohms	Coil Power	1.2 W
Coil Current	100mA
