1825223-3

Agastat Relays / TE Connectivity

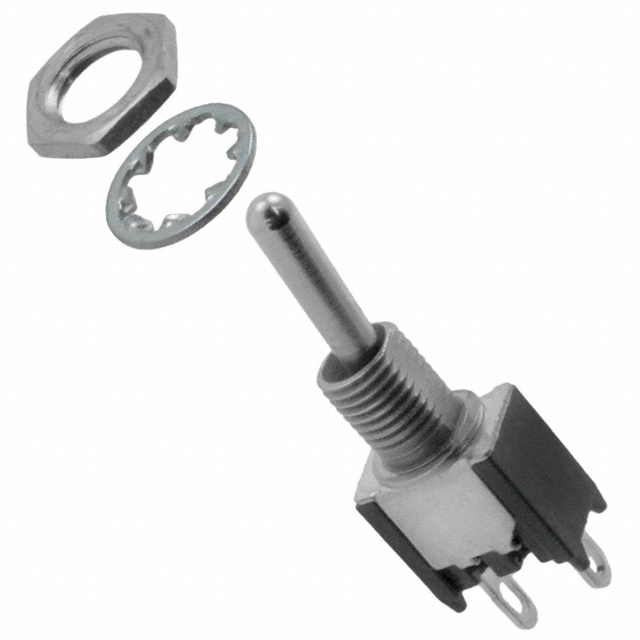

Image may be representation. See specifications for product details.

Product Overview

Part Number:	1825223-3
Manufacturer/Brand:	Agastat Relays / TE Connectivity
Product description	SWITCH TOGGLE SPST 3A 125V
Datasheets:	1.1825223-3.pdf 2.1825223-3.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	9705 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

Download Product Details PDF

In Stock 9705 pcs

Reference Price (In US Dollars)

1 pcs: $4.482

10 pcs: $4.363

25 pcs: $4.245

50 pcs: $4.009

100 pcs: $3.891

250 pcs: $3.773

500 pcs: $3.184

1000 pcs: $3.066

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$4.482

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of 1825223-3

Part Number	1825223-3	Manufacturer	Agastat Relays / TE Connectivity
Description	SWITCH TOGGLE SPST 3A 125V	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	9705 pcs	Data sheet	1.1825223-3.pdf 2.1825223-3.pdf
Voltage Rating - DC	28V	Voltage Rating - AC	125V
Termination Style	Solder Lug	Switch Function	On-Off
Series	TT	Panel Cutout Dimensions	Circular - 4.83mm Dia
Packaging	Bulk	Other Names	1825223-3-ND 18252233 450-1812 TT13A3T04 TT13A3T04-ND
Operating Temperature	-30°C ~ 85°C	Mounting Type	Panel Mount
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Manufacturer Standard Lead Time	8 Weeks
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Ingress Protection	-
Illumination Voltage (Nominal)	-	Illumination Type, Color	-
Illumination	Non-Illuminated	Features	Epoxy Sealed Terminals
Electrical Life	20,000 Cycles	Detailed Description	Toggle Switch SPST Panel Mount
Current Rating	3A (AC/DC)	Circuit	SPST
Bushing Thread	10-48	Actuator Type	Standard Round
Actuator Material	Brass, Nickel Plated	Actuator Length	9.68mm
