1761685-7

Agastat Relays / TE Connectivity

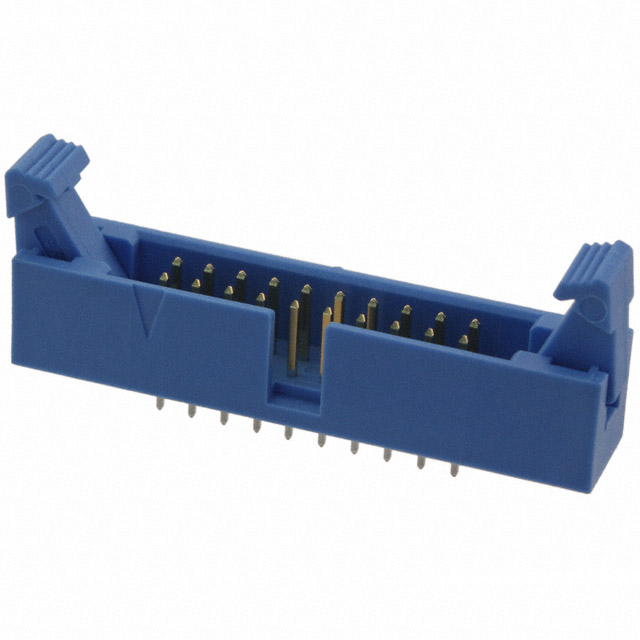

Image may be representation. See specifications for product details.

Product Overview

Part Number:	1761685-7
Manufacturer/Brand:	Agastat Relays / TE Connectivity
Product description	CONN HEADER PIN 20POS VERT GOLD
Datasheets:	1761685-7.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	20792 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 20792 pcs

Reference Price (In US Dollars)

1 pcs: $3.019

10 pcs: $2.889

100 pcs: $2.429

500 pcs: $2.035

1000 pcs: $1.799

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$3.019

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of 1761685-7

Part Number	1761685-7	Manufacturer	Agastat Relays / TE Connectivity
Description	CONN HEADER PIN 20POS VERT GOLD	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	20792 pcs	Data sheet	1761685-7.pdf
Voltage Rating	250VAC	Termination	Solder
Style	Board to Cable/Wire	Shrouding	Shrouded - 4 Wall
Series	AMP-Latch	Row Spacing - Mating	0.100" (2.54mm)
Pitch - Mating	0.100" (2.54mm)	Packaging	Bulk
Overall Contact Length	-	Other Names	1761685-7-ND 17616857 A101792
Operating Temperature	-65°C ~ 105°C	Number of Rows	2
Number of Positions Loaded	All	Number of Positions	20
Mounting Type	Through Hole	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Material Flammability Rating	UL94 V-0	Mated Stacking Heights	-
Manufacturer Standard Lead Time	17 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Insulation Material	Polybutylene Terephthalate (PBT)	Insulation Height	0.350" (8.89mm)
Insulation Color	Blue	Ingress Protection	-
Features	Keying Slot	Fastening Type	Latch Lock/Eject Hooks, Short
Detailed Description	Connector Header Through Hole 20 position 0.100" (2.54mm)	Current Rating	1A per Contact
Contact Type	Male Pin	Contact Shape	Square
Contact Material	Phosphor Bronze	Contact Length - Post	0.102" (2.60mm)
Contact Length - Mating	0.240" (6.10mm)	Contact Finish Thickness - Post	100.0µin (2.54µm)
Contact Finish Thickness - Mating	30.0µin (0.76µm)	Contact Finish - Post	Tin
Contact Finish - Mating	Gold	Connector Type	Header
Applications	-
