1586958-1

Agastat Relays / TE Connectivity

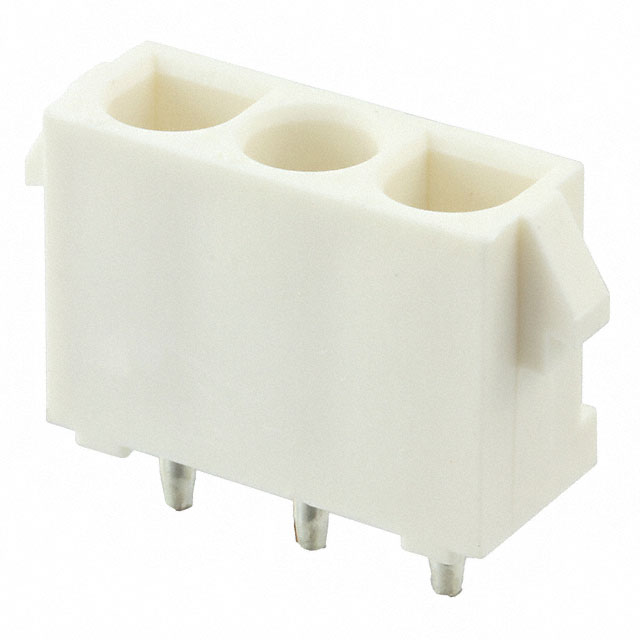

Image may be representation. See specifications for product details.

Product Overview

Part Number:	1586958-1
Manufacturer/Brand:	Agastat Relays / TE Connectivity
Product description	CONN PIN HEADER 3POS U-MNL
Datasheets:	1.1586958-1.pdf 2.1586958-1.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	239630 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 239630 pcs

Reference Price (In US Dollars)

1 pcs: $0.229

10 pcs: $0.216

100 pcs: $0.166

500 pcs: $0.144

1000 pcs: $0.119

5000 pcs: $0.105

10000 pcs: $0.097

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$0.229

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of 1586958-1

Part Number	1586958-1	Manufacturer	Agastat Relays / TE Connectivity
Description	CONN PIN HEADER 3POS U-MNL	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	239630 pcs	Data sheet	1.1586958-1.pdf 2.1586958-1.pdf
Voltage Rating	600VAC	Termination	Solder
Style	Board to Board or Cable	Shrouding	Shrouded - 4 Wall
Series	Universal MATE-N-LOK	Row Spacing - Mating	-
Pitch - Mating	0.250" (6.35mm)	Packaging	Bulk
Overall Contact Length	-	Operating Temperature	-40°C ~ 105°C
Number of Rows	1	Number of Positions Loaded	All
Number of Positions	3	Mounting Type	Through Hole
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Material Flammability Rating	UL94 V-2
Mated Stacking Heights	-	Manufacturer Standard Lead Time	13 Weeks
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Insulation Material	Polyamide (PA), Nylon
Insulation Height	0.550" (13.97mm)	Insulation Color	Natural
Ingress Protection	-	Features	Glow Wire Compliant
Fastening Type	Locking Ramp	Detailed Description	Connector Header Through Hole 3 position 0.250" (6.35mm)
Current Rating	12A	Contact Type	Male Pin
Contact Shape	Circular	Contact Material	Phosphor Bronze
Contact Length - Post	0.155" (3.94mm)	Contact Length - Mating	-
Contact Finish Thickness - Post	-	Contact Finish Thickness - Mating	-
Contact Finish - Post	-	Contact Finish - Mating	Tin
Connector Type	Header	Applications	General Purpose
