Agastat Relays / TE Connectivity

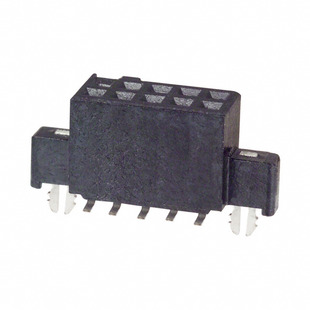

| Part Number | 104652-1 | Manufacturer | Agastat Relays / TE Connectivity |
|---|---|---|---|
| Description | CONN RECEPT 10POS VERT .050 SMD | Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Quantity Available | 20652 pcs | Data sheet | 104652-1.pdf |
| Voltage Rating | - | Termination | Solder |
| Style | Board to Board or Cable | Series | AMPMODU 50/50 Grid |
| Row Spacing - Mating | 0.050" (1.27mm) | Pitch - Mating | 0.050" (1.27mm) |
| Packaging | Tube | Other Names | 104652-1-ND A29089 |
| Operating Temperature | -65°C ~ 105°C | Number of Rows | 2 |
| Number of Positions Loaded | All | Number of Positions | 10 |
| Mounting Type | Surface Mount | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material Flammability Rating | - | Mated Stacking Heights | 6.35mm, 8.13mm, 9.91mm |
| Manufacturer Standard Lead Time | 4 Weeks | Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Insulation Material | Liquid Crystal Polymer (LCP) | Insulation Height | 0.187" (4.75mm) |
| Insulation Color | Black | Ingress Protection | - |
| Features | Board Lock | Fastening Type | Push-Pull |
| Detailed Description | 10 Position Receptacle Connector 0.050" (1.27mm) Surface Mount Gold | Current Rating | - |
| Contact Type | Female Socket | Contact Shape | Square |
| Contact Material | Copper Alloy | Contact Length - Post | - |
| Contact Finish Thickness - Post | 150.0µin (3.81µm) | Contact Finish Thickness - Mating | 30.0µin (0.76µm) |
| Contact Finish - Post | Tin-Lead | Contact Finish - Mating | Gold |
| Connector Type | Receptacle | Applications | - |
