103233-3

Agastat Relays / TE Connectivity

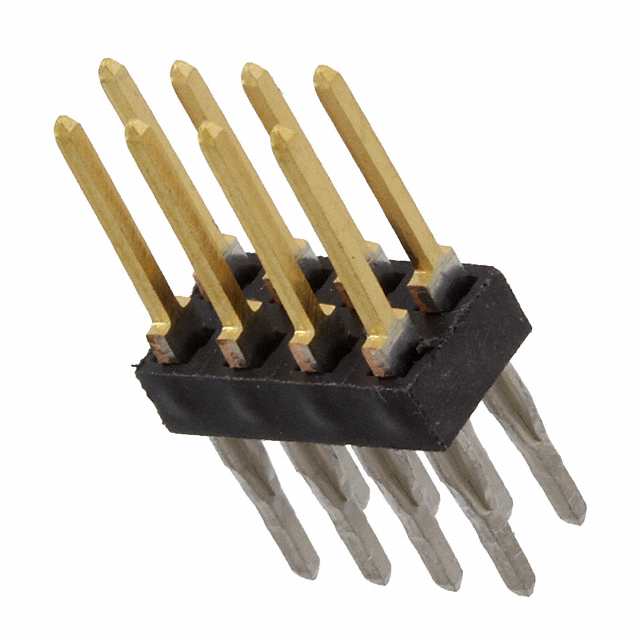

Image may be representation. See specifications for product details.

Product Overview

Part Number:	103233-3
Manufacturer/Brand:	Agastat Relays / TE Connectivity
Product description	CONN HDR 8POS A/PIN STR DUAL PCB
Datasheets:	103233-3.pdf
RoHs Status	Contains lead / RoHS non-compliant
Stock Condition	71065 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 71065 pcs

Reference Price (In US Dollars)

1 pcs: $0.605

10 pcs: $0.55

100 pcs: $0.471

500 pcs: $0.393

1000 pcs: $0.337

5000 pcs: $0.298

10000 pcs: $0.292

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$0.605

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of 103233-3

Part Number	103233-3	Manufacturer	Agastat Relays / TE Connectivity
Description	CONN HDR 8POS A/PIN STR DUAL PCB	Lead Free Status / RoHS Status	Contains lead / RoHS non-compliant
Quantity Available	71065 pcs	Data sheet	103233-3.pdf
Voltage Rating	-	Termination	Press-Fit, Solder
Style	Board to Board or Cable	Shrouding	Unshrouded
Series	AMPMODU Mod II	Row Spacing - Mating	0.100" (2.54mm)
Pitch - Mating	0.100" (2.54mm)	Packaging	Bulk
Overall Contact Length	0.660" (16.76mm)	Other Names	103233-3-ND 2-42935-3981 A111676
Operating Temperature	-55°C ~ 125°C	Number of Rows	2
Number of Positions Loaded	All	Number of Positions	8
Mounting Type	Through Hole	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Material Flammability Rating	UL94 V-0	Mated Stacking Heights	-
Manufacturer Standard Lead Time	7 Weeks	Lead Free Status / RoHS Status	Contains lead / RoHS non-compliant
Insulation Material	Thermoplastic	Insulation Height	0.090" (2.29mm)
Insulation Color	Black	Ingress Protection	-
Features	-	Fastening Type	Push-Pull
Detailed Description	Connector Header Through Hole 8 position 0.100" (2.54mm)	Current Rating	3A
Contact Type	Male Pin	Contact Shape	Square
Contact Material	Copper Alloy	Contact Length - Post	0.250" (6.35mm)
Contact Length - Mating	0.320" (8.13mm)	Contact Finish Thickness - Post	100.0µin (2.54µm)
Contact Finish Thickness - Mating	30.0µin (0.76µm)	Contact Finish - Post	Tin-Lead
Contact Finish - Mating	Gold	Connector Type	Header
Applications	-
