1-796690-1

Agastat Relays / TE Connectivity

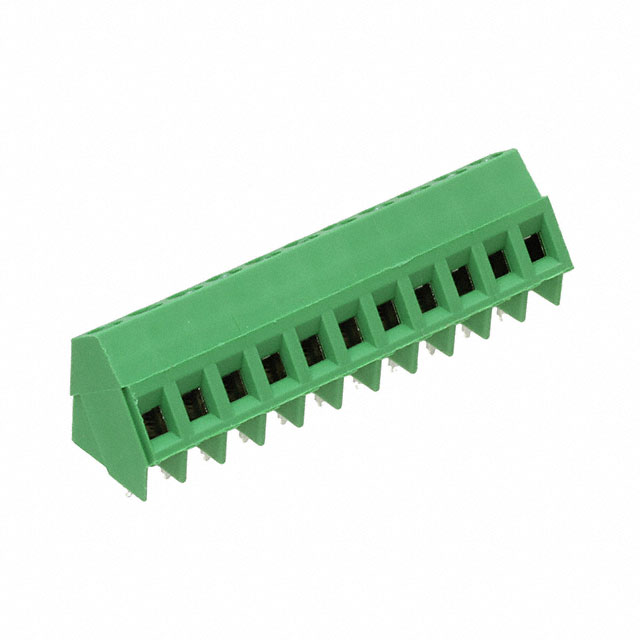

Image may be representation. See specifications for product details.

Product Overview

Part Number:	1-796690-1
Manufacturer/Brand:	Agastat Relays / TE Connectivity
Product description	TERM BLOCK 11POS 35DEGREE 5MM
Datasheets:	1-796690-1.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	24027 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 24027 pcs

Reference Price (In US Dollars)

1 pcs: $2.909

10 pcs: $2.294

25 pcs: $2.182

50 pcs: $1.981

100 pcs: $1.903

250 pcs: $1.679

500 pcs: $1.567

1000 pcs: $1.455

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$2.909

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of 1-796690-1

Part Number	1-796690-1	Manufacturer	Agastat Relays / TE Connectivity
Description	TERM BLOCK 11POS 35DEGREE 5MM	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	24027 pcs	Data sheet	1-796690-1.pdf
Wire Termination	Screw - Rising Cage Clamp	Wire Gauge	12-30 AWG
Voltage	300V	Torque - Screw	0.79 Nm (7.0 Lb-In)
Series	Buchanan	Screw Thread	M3
Screw Material - Plating	Brass - Nickel Plated	Positions Per Level	11
Pitch	0.197" (5.00mm)	Packaging	Bulk
Other Names	1-796690-1-ND A135004	Operating Temperature	-
Number of Levels	1	Mounting Type	Through Hole
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Mating Orientation	35° (145°) Angle with Board
Manufacturer Standard Lead Time	22 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Housing Material	Polyamide (PA66), Nylon 6/6	Features	Interlocking (Side)
Detailed Description	11 Position Wire to Board Terminal Block 35° (145°) Angle with Board 0.197" (5.00mm) Through Hole	Current	17.5A
Contact Material - Plating	Brass - Tin Plated	Color	Green
Clamp Material - Plating	Brass - Tin Plated
