1-647676-1

Agastat Relays / TE Connectivity

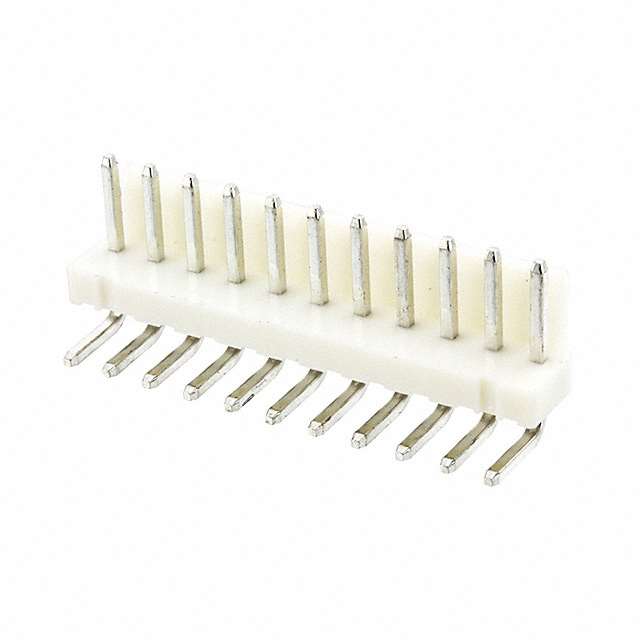

Image may be representation. See specifications for product details.

Product Overview

Part Number:	1-647676-1
Manufacturer/Brand:	Agastat Relays / TE Connectivity
Product description	3.96 EP HDR ASSY 11P R/A
Datasheets:	1-647676-1.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	121086 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 121086 pcs

Reference Price (In US Dollars)

1 pcs: $0.349

10 pcs: $0.306

100 pcs: $0.264

500 pcs: $0.216

1000 pcs: $0.192

5000 pcs: $0.168

10000 pcs: $0.16

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$0.349

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of 1-647676-1

Part Number	1-647676-1	Manufacturer	Agastat Relays / TE Connectivity
Description	3.96 EP HDR ASSY 11P R/A	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	121086 pcs	Data sheet	1-647676-1.pdf
Voltage Rating	250VAC	Termination	Solder
Style	Board to Cable/Wire	Shrouding	Shrouded - 1 Wall
Series	Economy Power	Row Spacing - Mating	-
Pitch - Mating	0.156" (3.96mm)	Packaging	Bulk
Overall Contact Length	-	Other Names	A116448
Operating Temperature	-25°C ~ 105°C	Number of Rows	1
Number of Positions Loaded	All	Number of Positions	11
Mounting Type	Through Hole, Right Angle	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Material Flammability Rating	UL94 V-0	Mated Stacking Heights	-
Manufacturer Standard Lead Time	16 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Insulation Material	Polyamide (PA66), Nylon 6/6	Insulation Height	0.339" (8.61mm)
Insulation Color	White	Ingress Protection	-
Features	-	Fastening Type	Friction Lock
Detailed Description	Connector Header Through Hole, Right Angle 11 position 0.156" (3.96mm)	Current Rating	7.5A
Contact Type	Male Pin	Contact Shape	Square
Contact Material	Brass	Contact Length - Post	0.142" (3.60mm)
Contact Length - Mating	0.338" (8.59mm)	Contact Finish Thickness - Post	80.0µin (2.03µm)
Contact Finish Thickness - Mating	80.0µin (2.03µm)	Contact Finish - Post	Tin
Contact Finish - Mating	Tin	Connector Type	Header
Applications	General Purpose, Industrial, Lighting
