1-292252-8

Agastat Relays / TE Connectivity

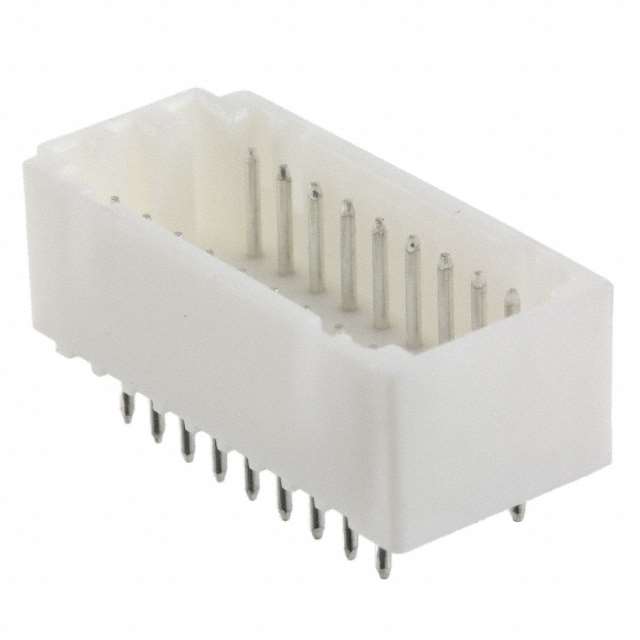

Image may be representation. See specifications for product details.

Product Overview

Part Number:	1-292252-8
Manufacturer/Brand:	Agastat Relays / TE Connectivity
Product description	CONN HEADER 18POS VERT TIN 2MM
Datasheets:	1-292252-8.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	98277 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 98277 pcs

Reference Price (In US Dollars)

2520 pcs: $0.195

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$0.195

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of 1-292252-8

Part Number	1-292252-8	Manufacturer	Agastat Relays / TE Connectivity
Description	CONN HEADER 18POS VERT TIN 2MM	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	98277 pcs	Data sheet	1-292252-8.pdf
Voltage Rating	125VAC	Termination	Solder
Style	Board to Cable/Wire	Shrouding	Shrouded - 4 Wall
Series	CT	Row Spacing - Mating	0.256" (6.50mm)
Pitch - Mating	0.079" (2.00mm)	Packaging	Tray
Overall Contact Length	0.386" (9.80mm)	Other Names	1-292252-8-ND A114830
Operating Temperature	-	Number of Rows	2
Number of Positions Loaded	All	Number of Positions	18
Mounting Type	Through Hole	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Material Flammability Rating	UL94 V-0	Mated Stacking Heights	-
Manufacturer Standard Lead Time	13 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Insulation Material	Polyamide (PA66), Nylon 6/6	Insulation Height	0.295" (7.50mm)
Insulation Color	Natural	Ingress Protection	-
Features	-	Fastening Type	Detent Lock
Detailed Description	Connector Header Through Hole 18 position 0.079" (2.00mm)	Current Rating	Varies by Wire Gauge
Contact Type	Male Pin	Contact Shape	Circular
Contact Material	Brass	Contact Length - Post	0.126" (3.20mm)
Contact Length - Mating	0.185" (4.70mm)	Contact Finish Thickness - Post	-
Contact Finish Thickness - Mating	-	Contact Finish - Post	Tin
Contact Finish - Mating	Tin	Connector Type	Header
Applications	General Purpose
