1-2299005-1

Agastat Relays / TE Connectivity

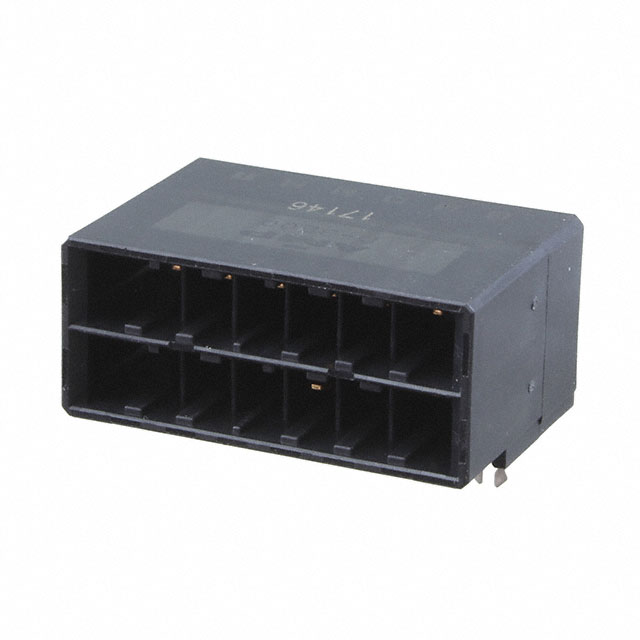

Image may be representation. See specifications for product details.

Product Overview

Part Number:	1-2299005-1
Manufacturer/Brand:	Agastat Relays / TE Connectivity
Product description	DYNAMIC D3200M FMLB HDR ASSY 12P
Datasheets:	1.1-2299005-1.pdf 2.1-2299005-1.pdf 3.1-2299005-1.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	26555 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 26555 pcs

Reference Price (In US Dollars)

1 pcs: $2.411

12 pcs: $2.311

108 pcs: $1.909

504 pcs: $1.608

1008 pcs: $1.407

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$2.411

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of 1-2299005-1

Part Number	1-2299005-1	Manufacturer	Agastat Relays / TE Connectivity
Description	DYNAMIC D3200M FMLB HDR ASSY 12P	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	26555 pcs	Data sheet	1.1-2299005-1.pdf 2.1-2299005-1.pdf 3.1-2299005-1.pdf
Voltage Rating	600V	Termination	Solder
Style	Board to Cable/Wire	Shrouding	Shrouded - 4 Wall
Series	Dynamic D3200M	Row Spacing - Mating	0.300" (7.62mm)
Pitch - Mating	0.200" (5.08mm)	Packaging	Bulk
Overall Contact Length	-	Other Names	A126882
Operating Temperature	-55°C ~ 105°C	Number of Rows	2
Number of Positions Loaded	All	Number of Positions	12
Mounting Type	Through Hole, Right Angle	Moisture Sensitivity Level (MSL)	Not Applicable
Material Flammability Rating	UL94 V-0	Mated Stacking Heights	-
Manufacturer Standard Lead Time	41 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Insulation Material	Thermoplastic, Polyester	Insulation Height	0.727" (18.47mm)
Insulation Color	Black	Ingress Protection	-
Features	Board Lock	Fastening Type	-
Detailed Description	Connector Header Through Hole, Right Angle 12 position 0.200" (5.08mm)	Current Rating	Varies by Wire Gauge
Contact Type	Male Pin	Contact Shape	Rectangular
Contact Material	Copper Alloy	Contact Length - Post	0.134" (3.40mm)
Contact Length - Mating	-	Contact Finish Thickness - Post	-
Contact Finish Thickness - Mating	15.0µin (0.38µm)	Contact Finish - Post	Tin
Contact Finish - Mating	Gold	Connector Type	Header
Applications	Automotive, General Purpose, Industrial
