Agastat Relays / TE Connectivity

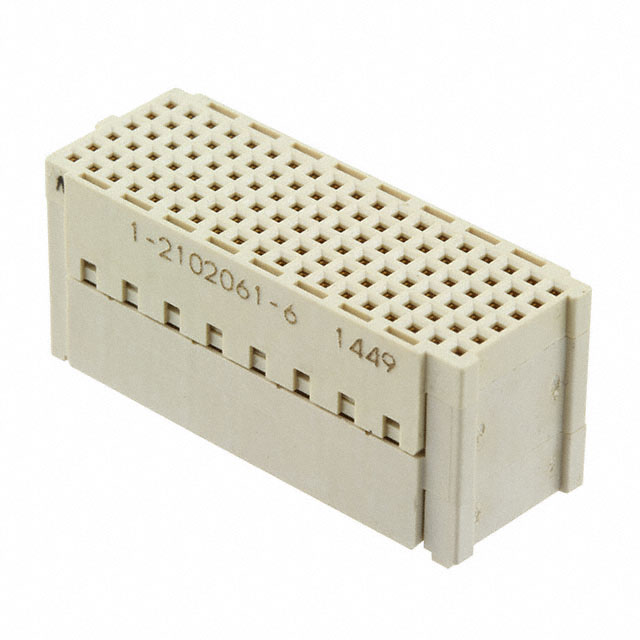

| Part Number | 1-2102061-6 | Manufacturer | Agastat Relays / TE Connectivity |
|---|---|---|---|
| Description | CONN RCPT 114POS | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 3171 pcs | Data sheet | 1.1-2102061-6.pdf2.1-2102061-6.pdf3.1-2102061-6.pdf |
| Voltage Rating | 250VAC | Termination | Solder |
| Style | Board to Board | Series | Mezalok, VITA 61 |
| Row Spacing - Mating | 0.050" (1.27mm) | Pitch - Mating | 0.050" (1.27mm) |
| Packaging | Tape & Reel (TR) | Other Names | A118944 |
| Operating Temperature | -55°C ~ 125°C | Number of Rows | 6 |
| Number of Positions Loaded | All | Number of Positions | 114 |
| Mounting Type | Surface Mount | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material Flammability Rating | - | Mated Stacking Heights | 15mm |
| Manufacturer Standard Lead Time | 22 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insulation Material | Liquid Crystal Polymer (LCP) | Insulation Height | 0.433" (11.00mm) |
| Insulation Color | Natural | Ingress Protection | - |
| Features | Pick and Place | Fastening Type | Push-Pull |
| Detailed Description | 114 Position Receptacle Connector 0.050" (1.27mm) Surface Mount Gold | Current Rating | - |
| Contact Type | Female Socket | Contact Shape | Square |
| Contact Material | Beryllium Copper | Contact Length - Post | - |
| Contact Finish Thickness - Post | - | Contact Finish Thickness - Mating | 30.0µin (0.76µm) |
| Contact Finish - Post | Tin | Contact Finish - Mating | Gold |
| Connector Type | Receptacle | Applications | General Purpose, Military |
