1-1744428-2

Agastat Relays / TE Connectivity

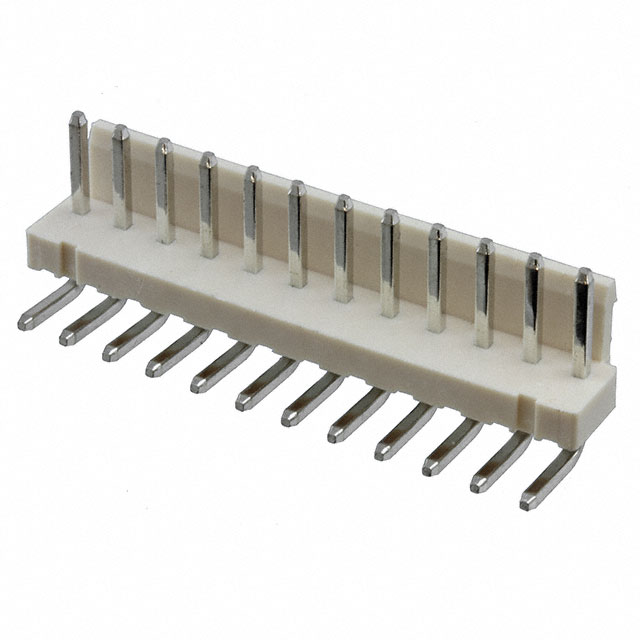

Image may be representation. See specifications for product details.

Product Overview

Part Number:	1-1744428-2
Manufacturer/Brand:	Agastat Relays / TE Connectivity
Product description	3.96 EP HDR ASSY 12P R/A, GW
Datasheets:	1-1744428-2.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	133586 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 133586 pcs

Reference Price (In US Dollars)

1 pcs: $0.343

10 pcs: $0.302

100 pcs: $0.26

500 pcs: $0.213

1000 pcs: $0.189

5000 pcs: $0.166

10000 pcs: $0.157

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$0.343

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of 1-1744428-2

Part Number	1-1744428-2	Manufacturer	Agastat Relays / TE Connectivity
Description	3.96 EP HDR ASSY 12P R/A, GW	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	133586 pcs	Data sheet	1-1744428-2.pdf
Voltage Rating	250VAC	Termination	Solder
Style	Board to Cable/Wire	Shrouding	Shrouded - 1 Wall
Series	Economy Power	Row Spacing - Mating	-
Pitch - Mating	0.156" (3.96mm)	Packaging	Bulk
Overall Contact Length	-	Other Names	A116390
Operating Temperature	-25°C ~ 105°C	Number of Rows	1
Number of Positions Loaded	All	Number of Positions	12
Mounting Type	Through Hole, Right Angle	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Material Flammability Rating	UL94 V-0	Mated Stacking Heights	-
Manufacturer Standard Lead Time	16 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Insulation Material	Polyamide (PA), Nylon	Insulation Height	0.339" (8.61mm)
Insulation Color	-	Ingress Protection	-
Features	Glow Wire Compliant	Fastening Type	Friction Lock
Detailed Description	Connector Header Through Hole, Right Angle 12 position 0.156" (3.96mm)	Current Rating	7.5A
Contact Type	Male Pin	Contact Shape	Square
Contact Material	Brass	Contact Length - Post	0.142" (3.60mm)
Contact Length - Mating	0.338" (8.59mm)	Contact Finish Thickness - Post	80.0µin (2.03µm)
Contact Finish Thickness - Mating	80.0µin (2.03µm)	Contact Finish - Post	Tin
Contact Finish - Mating	Tin	Connector Type	Header
Applications	General Purpose, Industrial, Lighting
