90814-3816

Affinity Medical Technologies - a Molex company

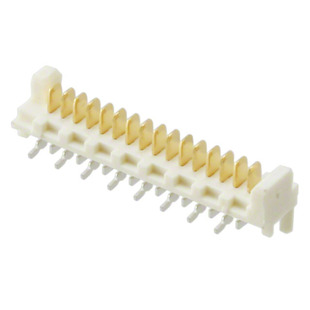

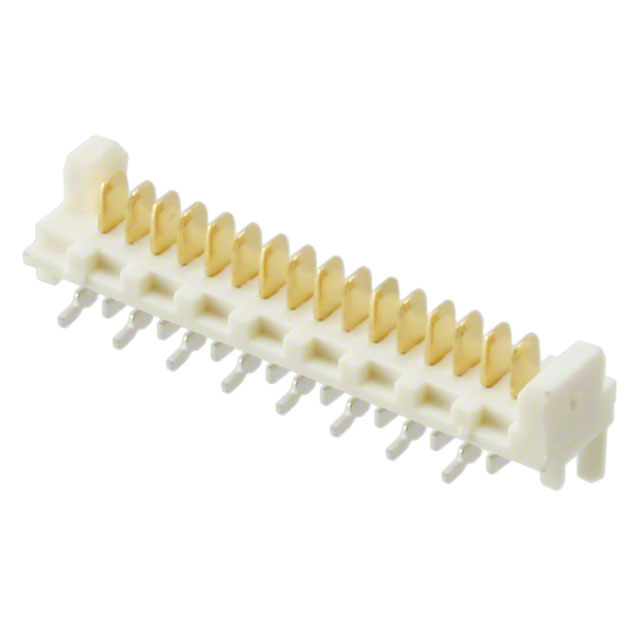

Image may be representation. See specifications for product details.

Product Overview

Part Number:	90814-3816
Manufacturer/Brand:	Affinity Medical Technologies - a Molex company
Product description	CONN HEADER 16PS 1.27MM SMD GOLD
Datasheets:	1.90814-3816.pdf 2.90814-3816.pdf 3.90814-3816.pdf 4.90814-3816.pdf 5.90814-3816.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	96919 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 96919 pcs

Reference Price (In US Dollars)

1 pcs: $0.51

10 pcs: $0.449

100 pcs: $0.387

500 pcs: $0.317

1000 pcs: $0.282

5000 pcs: $0.246

10000 pcs: $0.234

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$0.51

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of 90814-3816

Part Number	90814-3816	Manufacturer	Affinity Medical Technologies - a Molex company
Description	CONN HEADER 16PS 1.27MM SMD GOLD	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	96919 pcs	Data sheet	1.90814-3816.pdf 2.90814-3816.pdf 3.90814-3816.pdf 4.90814-3816.pdf 5.90814-3816.pdf
Voltage Rating	-	Termination	Solder
Style	Board to Cable/Wire	Shrouding	Shrouded - 2 Wall
Series	Picoflex PF-50 90814	Row Spacing - Mating	-
Pitch - Mating	0.050" (1.27mm)	Packaging	Tube
Overall Contact Length	-	Other Names	090814-3816 090814-3816-E 0908143816 0908143816-E 90814-3816-E 908143816 908143816-E WM19290
Operating Temperature	-	Number of Rows	1
Number of Positions Loaded	All	Number of Positions	16
Mounting Type	Surface Mount	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Material Flammability Rating	UL94 V-0	Mated Stacking Heights	-
Manufacturer Standard Lead Time	9 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Insulation Material	Polyamide (PA), Nylon, Glass Filled	Insulation Height	0.161" (4.10mm)
Insulation Color	Natural	Ingress Protection	-
Features	Board Guide	Fastening Type	Push-Pull
Detailed Description	Connector Header Surface Mount 16 position 0.050" (1.27mm)	Current Rating	-
Contact Type	Male Blade	Contact Shape	Rectangular
Contact Material	Cartridge Brass	Contact Length - Post	-
Contact Length - Mating	0.085" (2.15mm)	Contact Finish Thickness - Post	118.1µin (3.00µm)
Contact Finish Thickness - Mating	24.0µin (0.61µm)	Contact Finish - Post	Tin
Contact Finish - Mating	Palladium-Nickel	Connector Type	Header
Applications	Automotive, General Purpose, Industrial, Medical
