90156-0147

Affinity Medical Technologies - a Molex company

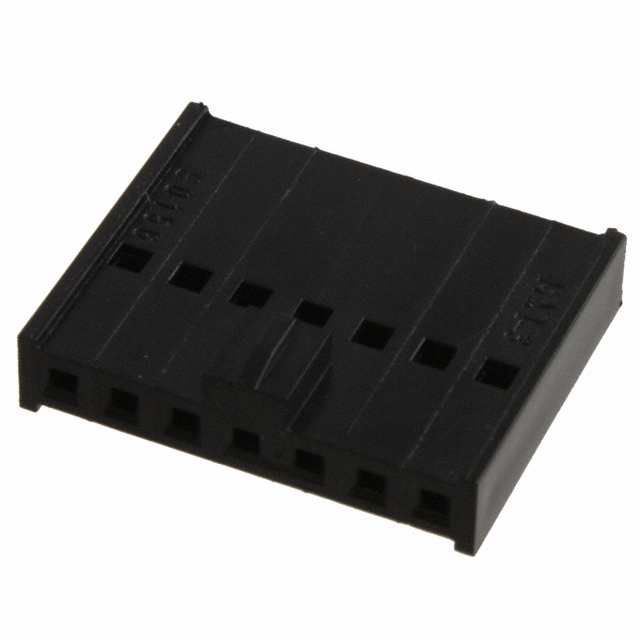

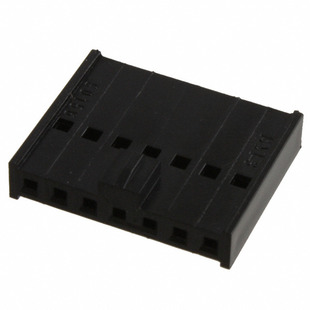

Image may be representation. See specifications for product details.

Product Overview

Part Number:	90156-0147
Manufacturer/Brand:	Affinity Medical Technologies - a Molex company
Product description	CONN HOUSING 7POS .100" CRIMP
Datasheets:	90156-0147.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	216273 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 216273 pcs

Reference Price (In US Dollars)

1 pcs: $0.194

10 pcs: $0.182

25 pcs: $0.164

50 pcs: $0.146

100 pcs: $0.14

250 pcs: $0.127

500 pcs: $0.121

1000 pcs: $0.10

2500 pcs: $0.091

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$0.194

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of 90156-0147

Part Number	90156-0147	Manufacturer	Affinity Medical Technologies - a Molex company
Description	CONN HOUSING 7POS .100" CRIMP	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	216273 pcs	Data sheet	90156-0147.pdf
Series	C-Grid III 90156	Row Spacing	-
Pitch	0.100" (2.54mm)	Packaging	Bulk
Other Names	090156-0147 090156-0147-E 0901560147 0901560147-E 90156-0147-E 901560147 901560147-E WM8022	Number of Rows	1
Number of Positions	7	Note	Contacts Not Included
Mounting Type	Free Hanging (In-Line)	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Manufacturer Standard Lead Time	9 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Features	-	Fastening Type	Locking Ramp
Detailed Description	7 Position Rectangular Housing Connector Receptacle Black 0.100" (2.54mm)	Contact Type	Female Socket
Contact Termination	Crimp	Connector Type	Receptacle
Color	Black
