Affinity Medical Technologies - a Molex company

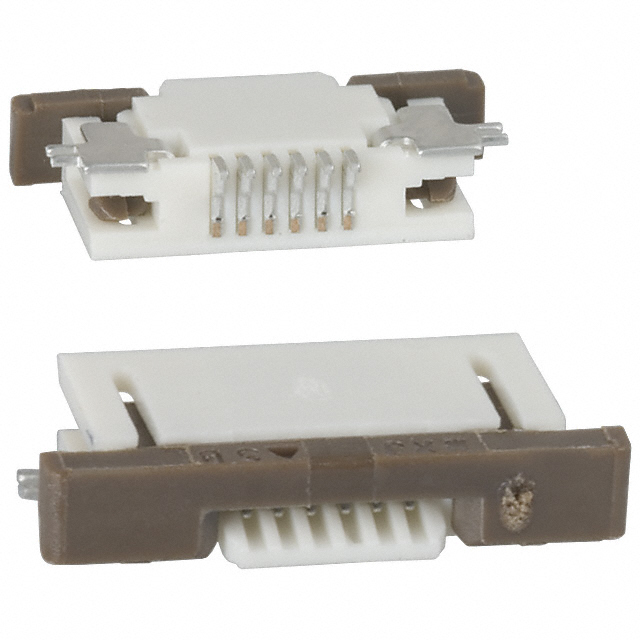

| Part Number | 52746-0670 | Manufacturer | Affinity Medical Technologies - a Molex company |
|---|---|---|---|
| Description | CONN FFC BOTTOM 6POS 0.50MM R/A | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 5803 pcs | Data sheet | 52746-0670.pdf |
| Voltage Rating | 50V | Termination | Solder |
| Series | Easy-On 52746 | Pitch | 0.020" (0.50mm) |
| Packaging | Tape & Reel (TR) | Other Names | 052746-0670 052746-0670-C 0527460670 0527460670-C 52746-0619 52746-0670-C 527460670 527460670-C WM7700TR |
| Operating Temperature | -20°C ~ 85°C | Number of Positions | 6 |
| Mounting Type | Surface Mount, Right Angle | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Mating Cycles | 20 | Material Flammability Rating | UL94 V-0 |
| Locking Feature | Slide Lock | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Housing Material | Polyamide (PA46), Nylon 4/6 | Housing Color | - |
| Height Above Board | 0.079" (2.00mm) | Flat Flex Type | FFC, FPC |
| Features | Solder Retention, Zero Insertion Force (ZIF) | FFC, FCB Thickness | 0.30mm |
| Detailed Description | 6 Position FFC, FPC Connector Contacts, Bottom 0.020" (0.50mm) Surface Mount, Right Angle | Current Rating | 0.5A |
| Contact Material | Phosphor Bronze | Contact Finish Thickness | - |
| Contact Finish | Tin Bismuth | Connector/Contact Type | Contacts, Bottom |
| Cable End Type | Straight | Actuator Material | Polyphenylene Sulfide (PPS) |
| Actuator Color | - |
