5025983991

Affinity Medical Technologies - a Molex company

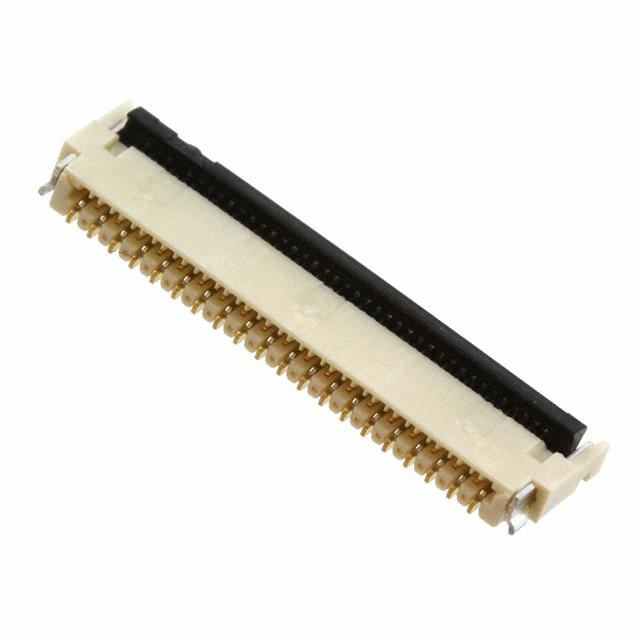

Image may be representation. See specifications for product details.

Product Overview

Part Number:	5025983991
Manufacturer/Brand:	Affinity Medical Technologies - a Molex company
Product description	CONN FPC 39POS 0.30MM R/A
Datasheets:	1.5025983991.pdf 2.5025983991.pdf 3.5025983991.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	5945 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 5945 pcs

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of 5025983991

Part Number	5025983991	Manufacturer	Affinity Medical Technologies - a Molex company
Description	CONN FPC 39POS 0.30MM R/A	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	5945 pcs	Data sheet	1.5025983991.pdf 2.5025983991.pdf 3.5025983991.pdf
Voltage Rating	50V	Termination	Solder
Series	BackFlip, Easy-On 502598	Pitch	0.012" (0.30mm)
Packaging	Cut Tape (CT)	Other Names	WM8996CT
Operating Temperature	-40°C ~ 85°C	Number of Positions	39
Mounting Type	Surface Mount, Right Angle	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Mating Cycles	10	Material Flammability Rating	UL94 V-0, UL94 HB
Locking Feature	Flip Lock, Backlock	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Housing Material	Liquid Crystal Polymer (LCP), Glass Filled	Housing Color	White
Height Above Board	0.045" (1.14mm)	Flat Flex Type	FPC
Features	Solder Retention	FFC, FCB Thickness	0.20mm
Detailed Description	39 Position FPC Connector Contacts, Top and Bottom 0.012" (0.30mm) Surface Mount, Right Angle	Current Rating	0.2A
Contact Material	Copper Alloy	Contact Finish Thickness	3.90µin (0.099µm)
Contact Finish	Gold	Connector/Contact Type	Contacts, Top and Bottom
Cable End Type	Tapered	Actuator Material	Polyamide (PA), Nylon, Glass Filled
Actuator Color	Black
