43650-0710

Affinity Medical Technologies - a Molex company

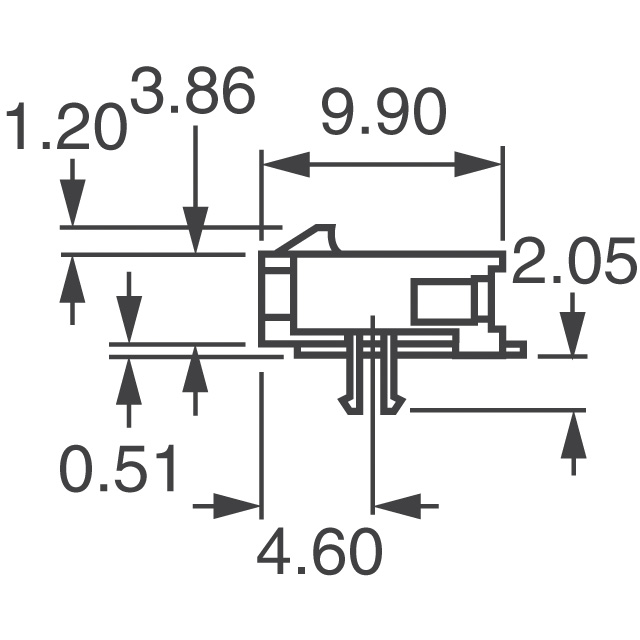

Image may be representation. See specifications for product details.

Product Overview

Part Number:	43650-0710
Manufacturer/Brand:	Affinity Medical Technologies - a Molex company
Product description	CONN HEADER 7POS 3MM RT ANG SMD
Datasheets:	1.43650-0710.pdf 2.43650-0710.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	51731 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 51731 pcs

Reference Price (In US Dollars)

2240 pcs: $0.575

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$0.575

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of 43650-0710

Part Number	43650-0710	Manufacturer	Affinity Medical Technologies - a Molex company
Description	CONN HEADER 7POS 3MM RT ANG SMD	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	51731 pcs	Data sheet	1.43650-0710.pdf 2.43650-0710.pdf
Voltage Rating	-	Termination	Solder
Style	Board to Cable/Wire	Shrouding	Shrouded - 4 Wall
Series	Micro-Fit 3.0 43650	Row Spacing - Mating	-
Pitch - Mating	0.118" (3.00mm)	Packaging	Tape & Reel (TR)
Overall Contact Length	-	Other Names	0436500710 43650-0710-P 436500710 WM2453
Operating Temperature	-	Number of Rows	1
Number of Positions Loaded	All	Number of Positions	7
Mounting Type	Surface Mount, Right Angle	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Material Flammability Rating	UL94 V-0	Mated Stacking Heights	-
Manufacturer Standard Lead Time	7 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Insulation Material	Liquid Crystal Polymer (LCP), Glass Filled	Insulation Height	0.172" (4.37mm)
Insulation Color	Black	Ingress Protection	-
Features	Board Lock	Fastening Type	Locking Ramp
Detailed Description	Connector Header Surface Mount, Right Angle 7 position 0.118" (3.00mm)	Current Rating	-
Contact Type	Male Pin	Contact Shape	Square
Contact Material	Brass	Contact Length - Post	-
Contact Length - Mating	-	Contact Finish Thickness - Post	100.0µin (2.54µm)
Contact Finish Thickness - Mating	15.0µin (0.38µm)	Contact Finish - Post	Tin
Contact Finish - Mating	Gold	Connector Type	Header
Applications	General Purpose, Medical, Military, Telecommunications
