43650-0509

Affinity Medical Technologies - a Molex company

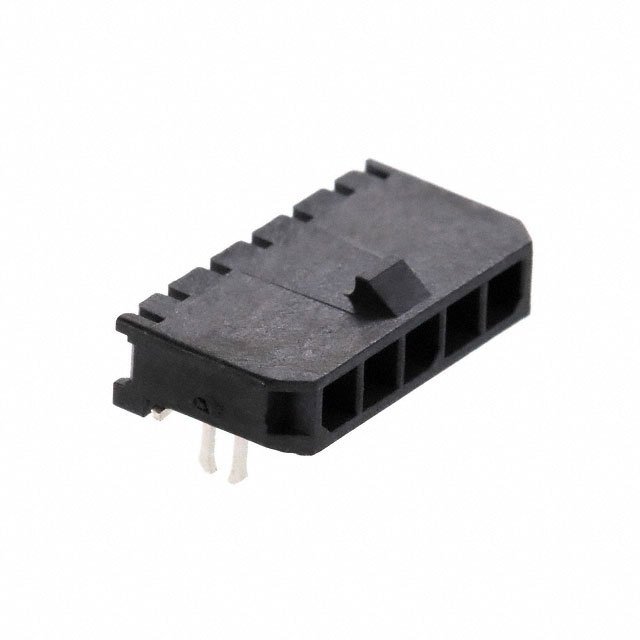

Image may be representation. See specifications for product details.

Product Overview

Part Number:	43650-0509
Manufacturer/Brand:	Affinity Medical Technologies - a Molex company
Product description	CONN HEADER 5POS R/A W/CLIP SMD
Datasheets:	1.43650-0509.pdf 2.43650-0509.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	52967 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 52967 pcs

Reference Price (In US Dollars)

1 pcs: $0.882

10 pcs: $0.799

100 pcs: $0.685

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$0.882

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of 43650-0509

Part Number	43650-0509	Manufacturer	Affinity Medical Technologies - a Molex company
Description	CONN HEADER 5POS R/A W/CLIP SMD	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	52967 pcs	Data sheet	1.43650-0509.pdf 2.43650-0509.pdf
Voltage Rating	-	Termination	Solder
Style	Board to Cable/Wire	Shrouding	Shrouded - 4 Wall
Series	Micro-Fit 3.0 43650	Row Spacing - Mating	-
Pitch - Mating	0.118" (3.00mm)	Packaging	Cut Tape (CT)
Overall Contact Length	-	Other Names	WM1883CT
Operating Temperature	-	Number of Rows	1
Number of Positions Loaded	All	Number of Positions	5
Mounting Type	Surface Mount, Right Angle	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Material Flammability Rating	UL94 V-0	Mated Stacking Heights	-
Manufacturer Standard Lead Time	8 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Insulation Material	Liquid Crystal Polymer (LCP), Glass Filled	Insulation Height	0.172" (4.37mm)
Insulation Color	Black	Ingress Protection	-
Features	Board Lock	Fastening Type	Locking Ramp
Detailed Description	Connector Header Surface Mount, Right Angle 5 position 0.118" (3.00mm)	Current Rating	-
Contact Type	Male Pin	Contact Shape	Square
Contact Material	Brass	Contact Length - Post	-
Contact Length - Mating	-	Contact Finish Thickness - Post	-
Contact Finish Thickness - Mating	60.0µin (1.52µm)	Contact Finish - Post	Tin
Contact Finish - Mating	Tin	Connector Type	Header
Applications	General Purpose, Medical, Military, Telecommunications
