42819-3212

Affinity Medical Technologies - a Molex company

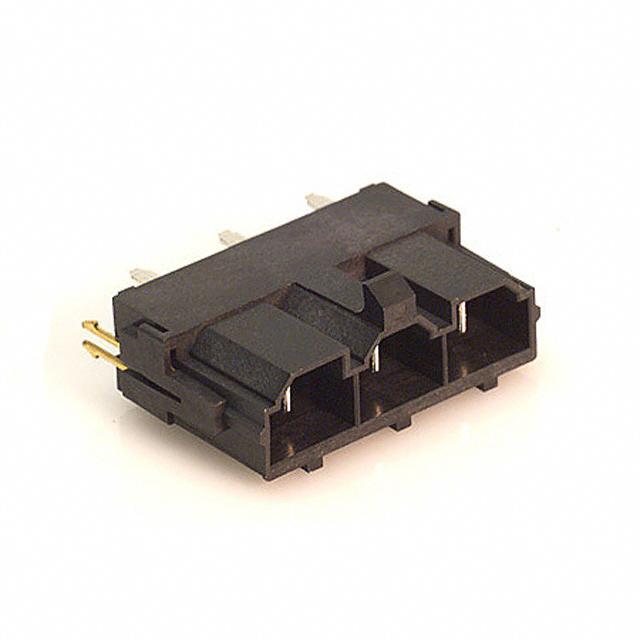

Image may be representation. See specifications for product details.

Product Overview

Part Number:	42819-3212
Manufacturer/Brand:	Affinity Medical Technologies - a Molex company
Product description	CONN HEADER 3POS 10MM VERT TIN
Datasheets:	1.42819-3212.pdf 2.42819-3212.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	5841 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 5841 pcs

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of 42819-3212

Part Number	42819-3212	Manufacturer	Affinity Medical Technologies - a Molex company
Description	CONN HEADER 3POS 10MM VERT TIN	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	5841 pcs	Data sheet	1.42819-3212.pdf 2.42819-3212.pdf
Voltage Rating	-	Termination	Solder
Style	Board to Cable/Wire	Shrouding	Shrouded - 4 Wall
Series	Mini-Fit Sr 42819	Row Spacing - Mating	-
Pitch - Mating	0.394" (10.00mm)	Packaging	Tray
Overall Contact Length	-	Other Names	042819-3212 042819-3212-E 0428193212 0428193212-E 428-19-3212-P 42819-3212-E 42819-3212-TR36 428193212 428193212-E WM1938
Operating Temperature	-	Number of Rows	1
Number of Positions Loaded	All	Number of Positions	3
Mounting Type	Through Hole	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Material Flammability Rating	UL94 V-0	Mated Stacking Heights	-
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Insulation Material	Polyamide (PA46), Nylon 4/6, Glass Filled
Insulation Height	0.827" (21.00mm)	Insulation Color	Black
Ingress Protection	-	Features	Board Lock
Fastening Type	Locking Ramp	Detailed Description	Connector Header Through Hole 3 position 0.394" (10.00mm)
Current Rating	-	Contact Type	Male Blade
Contact Shape	Rectangular	Contact Material	Copper Zirconium Alloy
Contact Length - Post	0.138" (3.50mm)	Contact Length - Mating	-
Contact Finish Thickness - Post	100.0µin (2.54µm)	Contact Finish Thickness - Mating	100.0µin (2.54µm)
Contact Finish - Post	Tin	Contact Finish - Mating	Tin
Connector Type	Header	Applications	Automotive, General Purpose, Industrial, Medical, Telecommunications
