Affinity Medical Technologies - a Molex company
| Part Number | 39353-0013 | Manufacturer | Affinity Medical Technologies - a Molex company |
|---|---|---|---|

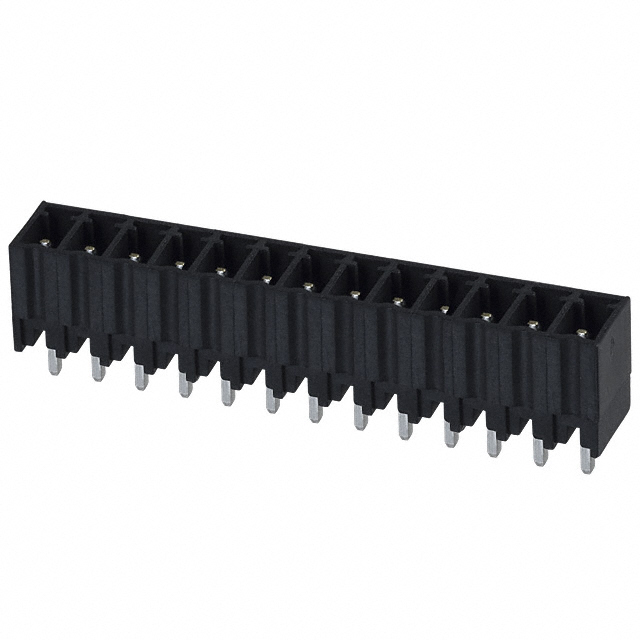

| Description | TERM BLOCK HDR 13POS VERT 3.5MM | Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Quantity Available | 4851 pcs | Data sheet | 39353-0013.pdf |
| Wire Strip Length | - | Wire Gauge or Range - mm² | - |
| Wire Gauge or Range - AWG | - | Voltage - UL | 300V |
| Type | Header, Male Pins, Shrouded (4 Side) | Torque - Screw | - |
| Termination Style | Solder | Series | Eurostyle 39353 |
| Screw Size | - | Positions Per Level | 13 |
| Plug Wire Entry | - | Pitch | 0.138" (3.50mm) |
| Packaging | Bulk | Other Names | 039353-0013 039353-0013-P 0393530013 0393530013-P 351613 39353-0013-P 393530013 393530013-P WM5635 |
| Operating Temperature | 140°C | Number of Positions | 13 |
| Number of Levels | 1 | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | - |
| Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant | Insulation Height | 0.360" (9.14mm) |
| Ingress Protection | - | Housing Material | Polyamide (PA46), Nylon 4/6 |
| Header Orientation | Vertical | Features | - |
| Detailed Description | 13 Position Terminal Block Header, Male Pins, Shrouded (4 Side) 0.138" (3.50mm) Vertical Through Hole | Current - UL | 10A |
| Current - IEC | - | Contact Tail Length | 0.134" (3.40mm) |
| Contact Mating Finish | Tin | Contact Material | Brass |
| Color | Black |
