22-28-8354

Affinity Medical Technologies - a Molex company

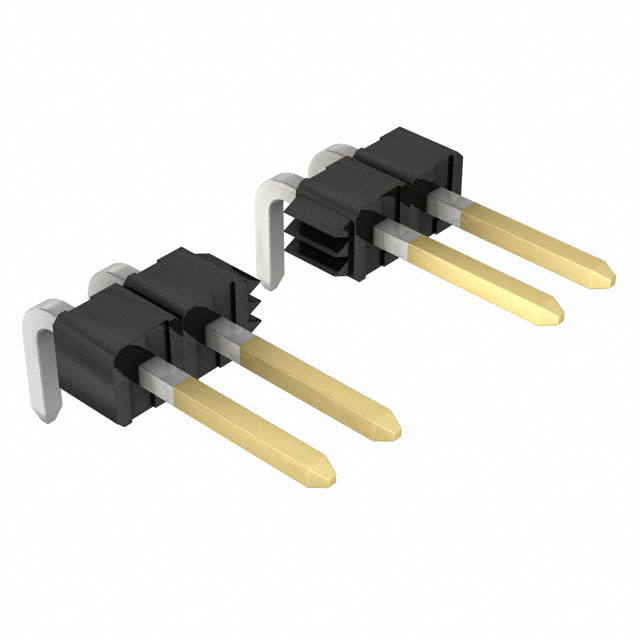

Image may be representation. See specifications for product details.

Product Overview

Part Number:	22-28-8354
Manufacturer/Brand:	Affinity Medical Technologies - a Molex company
Product description	CONN HEADER 35POS .100 R/A GOLD
Datasheets:	1.22-28-8354.pdf 2.22-28-8354.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	37643 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 37643 pcs

Reference Price (In US Dollars)

1 pcs: $0.949

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$0.949

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of 22-28-8354

Part Number	22-28-8354	Manufacturer	Affinity Medical Technologies - a Molex company
Description	CONN HEADER 35POS .100 R/A GOLD	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	37643 pcs	Data sheet	1.22-28-8354.pdf 2.22-28-8354.pdf
Voltage Rating	-	Termination	Solder
Style	Board to Board or Cable	Shrouding	Unshrouded
Series	KK 42377	Row Spacing - Mating	-
Pitch - Mating	0.100" (2.54mm)	Packaging	Bulk
Overall Contact Length	-	Other Names	0022288354 42377-0315
Operating Temperature	-	Number of Rows	1
Number of Positions Loaded	All	Number of Positions	35
Mounting Type	Through Hole, Right Angle	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Material Flammability Rating	UL94 V-0	Mated Stacking Heights	-
Manufacturer Standard Lead Time	14 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Insulation Material	Polyamide (PA), Nylon, Glass Filled	Insulation Height	0.098" (2.50mm)
Insulation Color	Black	Ingress Protection	-
Features	-	Fastening Type	Push-Pull
Detailed Description	Connector Header Through Hole, Right Angle 35 position 0.100" (2.54mm)	Current Rating	-
Contact Type	Male Pin	Contact Shape	Square
Contact Material	-	Contact Length - Post	0.120" (3.05mm)
Contact Length - Mating	0.244" (6.20mm)	Contact Finish Thickness - Post	100.0µin (2.54µm)
Contact Finish Thickness - Mating	30.0µin (0.76µm)	Contact Finish - Post	Tin
Contact Finish - Mating	Gold	Connector Type	Header, Breakaway
Applications	Automotive, General Purpose, Medical, Telecommunications
