15-31-1036

Affinity Medical Technologies - a Molex company

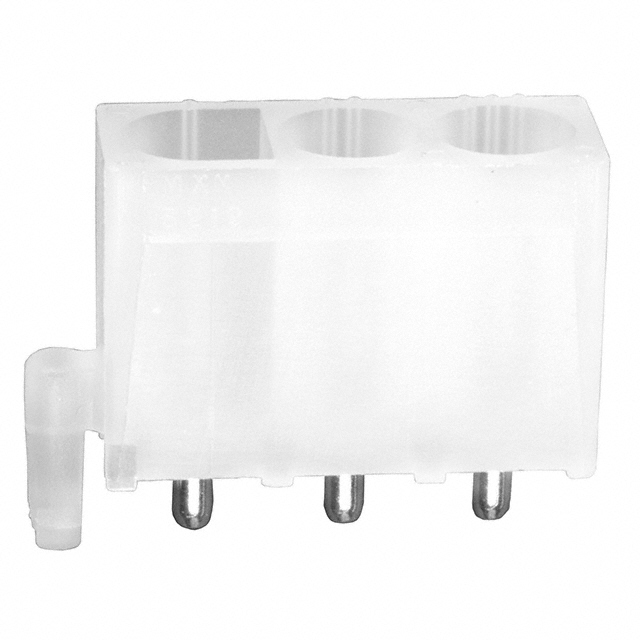

Image may be representation. See specifications for product details.

Product Overview

Part Number:	15-31-1036
Manufacturer/Brand:	Affinity Medical Technologies - a Molex company
Product description	CONN HEADER 3POS .093 VERT TIN
Datasheets:	15-31-1036.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	80662 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 80662 pcs

Reference Price (In US Dollars)

1 pcs: $0.492

10 pcs: $0.448

100 pcs: $0.384

500 pcs: $0.32

1000 pcs: $0.274

5000 pcs: $0.243

10000 pcs: $0.237

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$0.492

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of 15-31-1036

Part Number	15-31-1036	Manufacturer	Affinity Medical Technologies - a Molex company
Description	CONN HEADER 3POS .093 VERT TIN	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	80662 pcs	Data sheet	15-31-1036.pdf
Voltage Rating	-	Termination	Solder
Style	Board to Cable/Wire	Shrouding	Shrouded - 4 Wall
Series	5219	Row Spacing - Mating	-
Pitch - Mating	0.264" (6.71mm)	Packaging	Bulk
Overall Contact Length	-	Other Names	0015311036 15311036 5219-03A WM1038
Operating Temperature	-	Number of Rows	1
Number of Positions Loaded	All	Number of Positions	3
Mounting Type	Through Hole	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Material Flammability Rating	UL94 V-2	Mated Stacking Heights	-
Manufacturer Standard Lead Time	6 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Insulation Material	Polyamide (PA66), Nylon 6/6	Insulation Height	0.591" (15.00mm)
Insulation Color	Natural	Ingress Protection	-
Features	Board Lock	Fastening Type	Locking Ramp
Detailed Description	Connector Header Through Hole 3 position 0.264" (6.71mm)	Current Rating	-
Contact Type	Male Pin	Contact Shape	Circular
Contact Material	Brass	Contact Length - Post	0.138" (3.50mm)
Contact Length - Mating	-	Contact Finish Thickness - Post	39.4µin (1.00µm)
Contact Finish Thickness - Mating	39.4µin (1.00µm)	Contact Finish - Post	Tin
Contact Finish - Mating	Tin	Connector Type	Header
Applications	General Purpose, Telecommunications
