10-84-4090

Affinity Medical Technologies - a Molex company

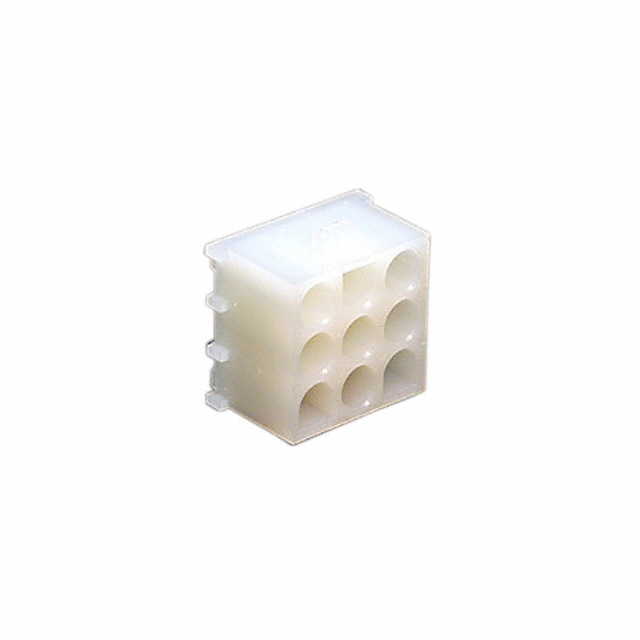

Image may be representation. See specifications for product details.

Product Overview

Part Number:	10-84-4090
Manufacturer/Brand:	Affinity Medical Technologies - a Molex company
Product description	CONN HEADER 9POS .084 VERT TIN
Datasheets:	10-84-4090.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	137745 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 137745 pcs

Reference Price (In US Dollars)

1 pcs: $0.372

10 pcs: $0.326

100 pcs: $0.281

500 pcs: $0.23

1000 pcs: $0.204

5000 pcs: $0.179

10000 pcs: $0.17

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$0.372

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of 10-84-4090

Part Number	10-84-4090	Manufacturer	Affinity Medical Technologies - a Molex company
Description	CONN HEADER 9POS .084 VERT TIN	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	137745 pcs	Data sheet	10-84-4090.pdf
Voltage Rating	-	Termination	Solder
Style	Board to Cable/Wire	Shrouding	Shrouded - 4 Wall
Series	MLX 42002	Row Spacing - Mating	0.250" (6.35mm)
Pitch - Mating	0.250" (6.35mm)	Packaging	Tray
Overall Contact Length	-	Other Names	0010844090 10-84-4090-P 10844090 A-42002-9A1A1 WM1260
Operating Temperature	-	Number of Rows	3
Number of Positions Loaded	All	Number of Positions	9
Mounting Type	Through Hole	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Material Flammability Rating	UL94 V-2	Mated Stacking Heights	-
Manufacturer Standard Lead Time	16 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Insulation Material	Polyamide (PA66), Nylon 6/6	Insulation Height	0.550" (13.97mm)
Insulation Color	Natural	Ingress Protection	-
Features	-	Fastening Type	Locking Ramp
Detailed Description	Connector Header Through Hole 9 position 0.250" (6.35mm)	Current Rating	-
Contact Type	Male Pin	Contact Shape	Circular
Contact Material	-	Contact Length - Post	0.169" (4.30mm)
Contact Length - Mating	-	Contact Finish Thickness - Post	-
Contact Finish Thickness - Mating	137.8µin (3.50µm)	Contact Finish - Post	Tin
Contact Finish - Mating	Tin	Connector Type	Header
Applications	Automotive, General Purpose, Industrial
