0908140226

Affinity Medical Technologies - a Molex company

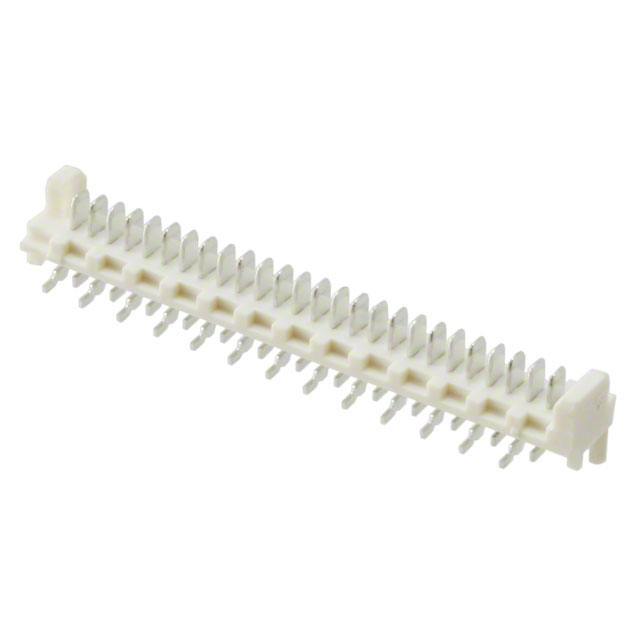

Image may be representation. See specifications for product details.

Product Overview

Part Number:	0908140226
Manufacturer/Brand:	Affinity Medical Technologies - a Molex company
Product description	1.27MM PF HDR SMT NRBLB RL SN 26
Datasheets:	1.0908140226.pdf 2.0908140226.pdf 3.0908140226.pdf 4.0908140226.pdf 5.0908140226.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	61447 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 61447 pcs

Reference Price (In US Dollars)

1 pcs: $0.793

10 pcs: $0.719

25 pcs: $0.675

50 pcs: $0.645

100 pcs: $0.616

250 pcs: $0.557

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$0.793

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of 0908140226

Part Number	0908140226	Manufacturer	Affinity Medical Technologies - a Molex company
Description	1.27MM PF HDR SMT NRBLB RL SN 26	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	61447 pcs	Data sheet	1.0908140226.pdf 2.0908140226.pdf 3.0908140226.pdf 4.0908140226.pdf 5.0908140226.pdf
Voltage Rating	250V	Termination	Solder
Style	Board to Cable/Wire	Shrouding	Shrouded - 2 Wall
Series	Picoflex PF-50 90814	Row Spacing - Mating	-
Pitch - Mating	0.050" (1.27mm)	Packaging	Original-Reel®
Overall Contact Length	-	Other Names	WM14390DKR
Operating Temperature	-	Number of Rows	1
Number of Positions Loaded	All	Number of Positions	26
Mounting Type	Surface Mount	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Material Flammability Rating	UL94 V-0	Mated Stacking Heights	-
Manufacturer Standard Lead Time	19 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Insulation Material	Polyamide (PA), Nylon, Glass Filled	Insulation Height	0.252" (6.40mm)
Insulation Color	Natural	Ingress Protection	-
Features	Board Guide	Fastening Type	Push-Pull
Detailed Description	Connector Header Surface Mount 26 position 0.050" (1.27mm)	Current Rating	1.2A
Contact Type	Male Blade	Contact Shape	Rectangular
Contact Material	Cartridge Brass	Contact Length - Post	-
Contact Length - Mating	0.085" (2.15mm)	Contact Finish Thickness - Post	-
Contact Finish Thickness - Mating	118.1µin (3.00µm)	Contact Finish - Post	Tin
Contact Finish - Mating	Tin	Connector Type	Header
Applications	Automotive, General Purpose, Industrial, Medical
