0757575141

Affinity Medical Technologies - a Molex company

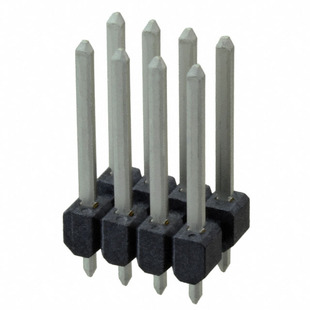

Image may be representation. See specifications for product details.

Product Overview

Part Number:	0757575141
Manufacturer/Brand:	Affinity Medical Technologies - a Molex company
Product description	CONN HEADER 2X4 VERT BRKWAY TIN
Datasheets:	0757575141.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	72668 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 72668 pcs

Reference Price (In US Dollars)

1 pcs: $0.662

10 pcs: $0.60

100 pcs: $0.514

532 pcs: $0.428

1064 pcs: $0.367

5320 pcs: $0.325

10108 pcs: $0.318

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$0.662

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of 0757575141

Part Number	0757575141	Manufacturer	Affinity Medical Technologies - a Molex company
Description	CONN HEADER 2X4 VERT BRKWAY TIN	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	72668 pcs	Data sheet	0757575141.pdf
Voltage Rating	-	Termination	Solder
Style	Board to Cable/Wire	Shrouding	Unshrouded
Series	MX150 75757	Row Spacing - Mating	0.236" (6.00mm)
Pitch - Mating	0.138" (3.50mm)	Packaging	Tube
Overall Contact Length	0.931" (23.64mm)	Other Names	0757575141-ND 75757-5141 757575141 WM12845
Operating Temperature	-	Number of Rows	2
Number of Positions Loaded	All	Number of Positions	8
Mounting Type	Through Hole	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Material Flammability Rating	UL94 V-0	Mated Stacking Heights	-
Manufacturer Standard Lead Time	11 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Insulation Material	Liquid Crystal Polymer (LCP), Glass Filled	Insulation Height	0.177" (4.50mm)
Insulation Color	Black	Ingress Protection	-
Features	-	Fastening Type	Push-Pull
Detailed Description	Connector Header Through Hole 8 position 0.138" (3.50mm)	Current Rating	-
Contact Type	Male Pin	Contact Shape	Square
Contact Material	Cartridge Brass	Contact Length - Post	0.120" (3.05mm)
Contact Length - Mating	0.633" (16.09mm)	Contact Finish Thickness - Post	100.0µin (2.54µm)
Contact Finish Thickness - Mating	100.0µin (2.54µm)	Contact Finish - Post	Tin
Contact Finish - Mating	Tin	Connector Type	Header, Breakaway
Applications	Automotive
